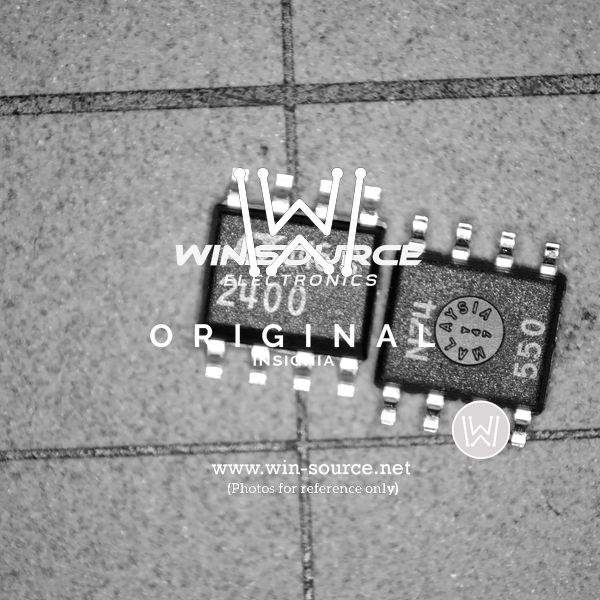

Product Overview: LTC2400CS8#PBF from Analog Devices Inc.

The LTC2400CS8#PBF is a high-precision analog to digital converter (ADC) component manufactured by Analog Devices Inc., renowned for its exceptional performance and accuracy. This 24-bit no latency ΔΣ ADC offers a compelling solution for applications requiring high-resolution measurements, such as industrial instrumentation, medical devices, and automated test equipment.

This ADC operates on a single 5V supply and features a differential input with a wide input common-mode range, making it versatile for various signal sources. The LTC2400CS8#PBF is capable of achieving a high level of accuracy without the need for external components such as precision voltage references or buffer amplifiers, thanks to its onboard oscillator and high-order, chopper-stabilized modulator.

The LTC2400CS8#PBF simplifies the implementation of high-precision analog-to-digital conversion by integrating an oscillator, 2ppm linearity, and no missing codes over temperature. The device's no latency output, which updates the conversion result after every cycle, is particularly beneficial for multiplexed applications that require a fast settling time.

With an impressive signal-to-noise ratio (SNR) and a flexible SPI interface for communication, this ADC is easy to integrate into a wide range of digital systems. The small footprint of the SO-8 package makes it an excellent choice for space-constrained applications.

Key features of the LTC2400CS8#PBF include:

• 24-Bit Resolution with No Missing Codes
• Single 5V Supply Operation
• Differential Input with Wide Input Common-Mode Range
• Integrated Oscillator
• 2ppm INL and 0.6ppm RMS Noise
• Flexible SPI Interface
• SO-8 Packaging

Overall, the LTC2400CS8#PBF is a robust ADC that delivers high-fidelity data conversion with minimal external circuitry, making it a top choice for precision measurement applications.
