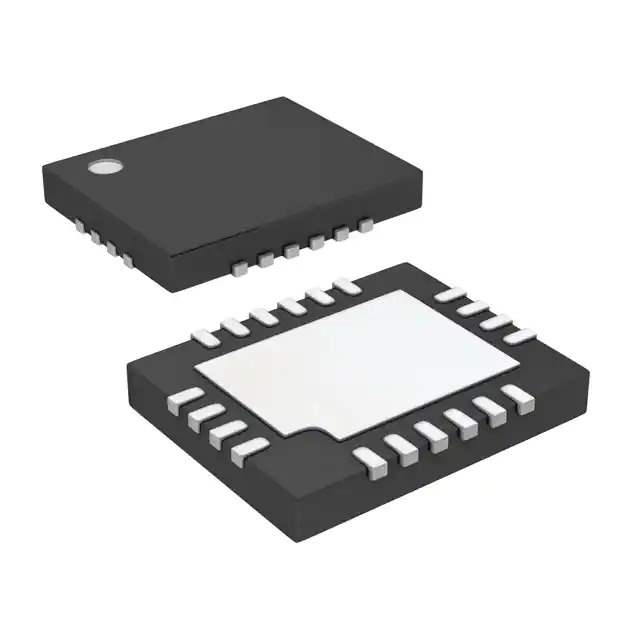

LTC2656IUFD-H12#TRPBF

Part No LTC2656IUFD-H12#TRPBF
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT V-OUT 20QFN
Datasheet
LTC2656IUFD-H12#TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters (DAC)
Mfr Analog Devices Inc.
Package Tape & Reel
Product Status Active
Programmable Not Verified
Number of Bits 12
Number of D/A Converters 8
Settling Time 4.6µs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI
Reference Type External, Internal
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 5V
INL/DNL (LSB) ±0.5, ±0.1
Temperature Range - Operating -40°C ~ 85°C
Package / Case 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (4x5)
Mounting Type Surface Mount
Base Product Number LTC2656
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 879376-LTC2656IUFD-H12#TRPBF
Ultra Librarian 3D Model Ultra Librarian LTC2656IUFD-H12#TRPBF CAD Model

Description

Analog Devices Inc. LTC2656IUFD-H12#TRPBF - 16-Bit Digital-to-Analog Converters

The LTC2656IUFD-H12#TRPBF is a high-performance, 16-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed to provide precise voltage outputs with an integrated precision reference. This product is part of a family of octal DACs that offer a variety of resolution options and output ranges to cater to a broad spectrum of applications such as industrial control systems, automated test equipment, and high-end audio equipment.

Key Features:

  • Resolution: 16-bit resolution provides fine granularity, allowing for highly accurate analog output signals.
  • Channels: Octal DAC configuration, meaning it contains eight DACs in one package, enabling multiple signal outputs simultaneously.
  • Output Range: Configurable voltage output ranges to suit a variety of applications and requirements.
  • Integrated Reference: Comes with an onboard precision reference, reducing the need for external components and simplifying design.
  • Interface: Offers a flexible SPI/Microwire-compatible serial interface that supports multiple communication protocols.
  • Power Efficiency: Operates with a single 2.7V to 5.5V supply, optimizing power consumption for battery-powered and portable devices.
  • Package: Housed in a compact, 28-lead QFN package, making it suitable for space-constrained applications.

Applications:

  • Industrial Automation
  • Process Control
  • Data Acquisition Systems
  • Automated Test Equipment
  • High-end Audio Systems

The LTC2656IUFD-H12#TRPBF is designed for easy integration into systems that require high accuracy and stability. Its robust design ensures reliable performance even in harsh industrial environments. The device's digital interface allows for straightforward digital control, while its multiple channels enable complex signal generation with minimal additional components. Whether you're designing precision instrumentation or looking to enhance audio fidelity, the LTC2656IUFD-H12#TRPBF from Analog Devices Inc. is a versatile solution that delivers outstanding performance and value.

For detailed specifications, application notes, and support documentation, please refer to the Analog Devices Inc. official website or contact their technical support team for assistance.
