Analog Devices Inc. LTC3129EUD#TRPBF Overview

The LTC3129EUD#TRPBF is a high-efficiency, 200mA buck-boost converter from Analog Devices Inc., a renowned leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits. This advanced power management IC is designed to operate from input voltages ranging from 2.42V to 15V, making it suitable for a wide array of power sources from single-cell batteries to multi-cell batteries and regulated power supplies.

Key Features

• Wide Input Voltage Range: The device can efficiently convert power from sources ranging between 2.42V and 15V, accommodating fluctuating inputs while maintaining a stable output.
• Adjustable Output: Users can set the output voltage from 1.8V to 5.5V via external resistors, catering to a variety of power requirements.
• High Efficiency: With its advanced design, the LTC3129EUD#TRPBF can deliver up to 200mA of continuous output current with high conversion efficiency.
• Low Noise: The buck-boost architecture minimizes ripple and noise, making this converter ideal for sensitive applications such as RF and precision analog circuits.
• Multiple Operating Modes: The IC supports Burst Mode® operation for high efficiency at low output currents, as well as forced continuous mode and shutdown modes.
• Thermal Protection: It includes over-temperature protection, ensuring reliable operation under varying environmental conditions.

Applications

The versatile nature of the LTC3129EUD#TRPBF makes it well-suited for portable devices, handheld instruments, and small-scale energy harvesting systems, among other applications. Its ability to provide a stable power supply from erratic inputs is particularly useful in applications where the power source is not consistent, such as solar-powered devices or equipment with fluctuating loads.

Package and Reliability

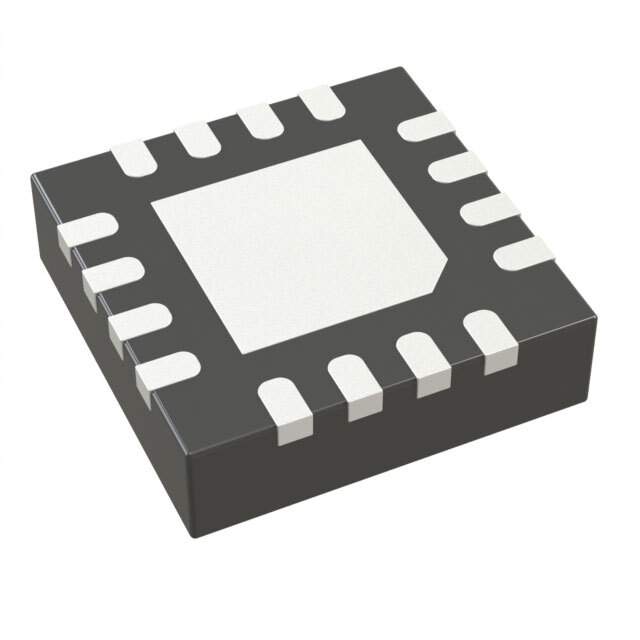

This converter comes in a compact, 16-lead QFN package, which is ideal for space-constrained applications. The LTC3129EUD#TRPBF is also characterized for operation from –40°C to 125°C, ensuring performance across a broad range of temperature conditions. Analog Devices Inc. is known for its commitment to high-quality and reliability, and the LTC3129EUD#TRPBF is no exception, providing a robust power management solution for designers and engineers.
