The LTC3441EDE is a versatile, extended input voltage, buck-boost DC/DC converter from Linear Technology designed to efficiently manage power within a wide range of applications. Its ability to automatically transition between buck and boost modes allows it to maintain a regulated output voltage even when the input voltage fluctuates above or below the output voltage.

Key Features

• Wide Input Voltage Range: The device operates over an input voltage range of 2.5V to 5.5V, making it suitable for single-cell Li-Ion, multi-cell alkaline or NiMH applications, as well as for fixed 3.3V or 5V systems.
• Adjustable Output Voltage: The LTC3441EDE provides an adjustable output voltage from 1.5V up to 5.25V, which can be set by external resistors. This flexibility makes it ideal for a variety of uses, from powering microprocessors to driving LEDs.
• High Efficiency: The converter's efficiency can reach up to 96%, thanks to its low-loss switching and 1.3MHz fixed frequency operation, which allows for the use of small, low-cost capacitors and inductors.

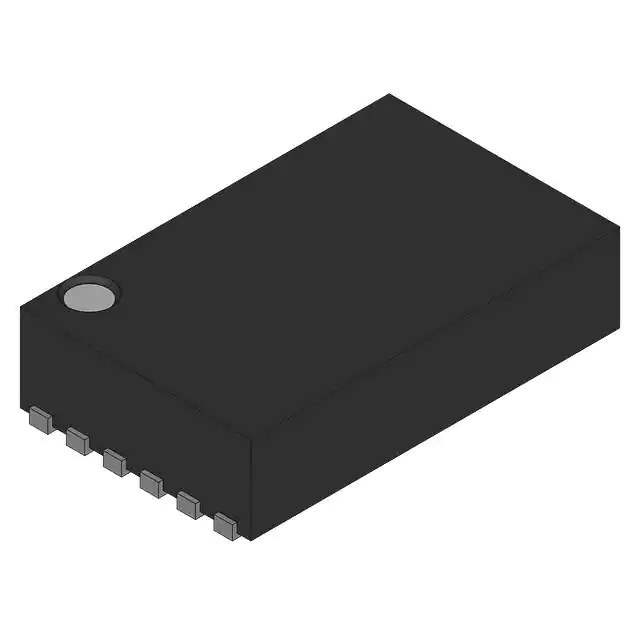

• Compact Design: Offered in a compact, thermally efficient 14-lead DFN package, the LTC3441EDE is designed to minimize board space and maximize thermal performance.
• Low Quiescent Current: With a quiescent current of only 25μA, the LTC3441EDE ensures minimal battery drain in light-load conditions.

Applications

The LTC3441EDE is ideal for a variety of portable power applications, including:

• Handheld Instruments
• Medical Devices
• Wireless Transmitters and GPS Devices
• Portable Media Players
• White LED Drivers

Protection Features

Linear Technology has equipped the LTC3441EDE with several protection features to ensure reliable operation. These include over-temperature protection, short-circuit protection, and under-voltage lockout, which safeguard the device and the application it powers against a variety of fault conditions.

Conclusion

The LTC3441EDE from Linear Technology is an efficient, flexible, and compact power management solution that meets the needs of a wide array of portable applications. Its ability to deliver a stable output voltage across a broad range of input voltages makes it an excellent choice for designers looking to enhance the performance and reliability of their power-sensitive products.
