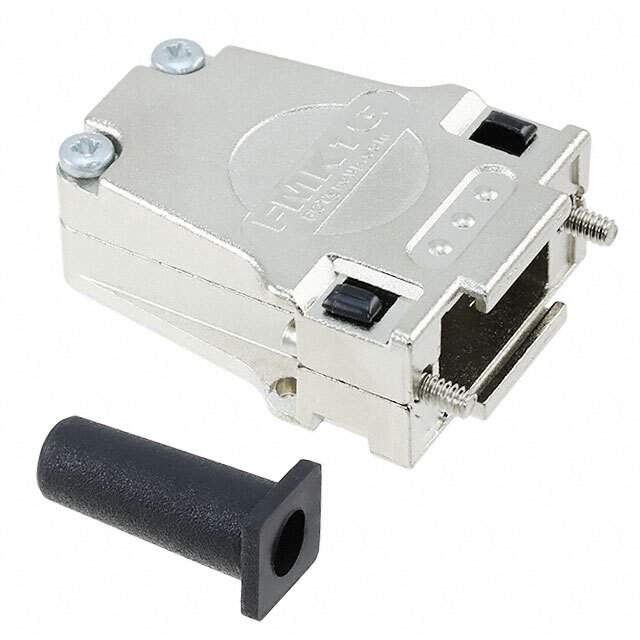

1727040096 Real Image
Same model may have multiple batches, images only for reference.

1727040096

Part No 1727040096
Manufacturer Molex, LLC
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 180DEG SHLD / 9 Position Two Piece Backshell Connector Silver 180° Shielded
Datasheet
1727040096 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr Molex
Series FMK, FCT 172704
Package Bulk
Accessory Type Two Piece Backshell
Number of Positions 9
Cable Type Round
Cable Exit 180°
Shielding Shielded
Material Zinc Die Cast
Plating Nickel
Hardware Assembly Hardware, Cable Clamp, Strain Relief
Features Mating Screws 4-40
Color Silver
Base Product Number 172704
Standard Package 100
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1350493-1727040096
Ultra Librarian 3D Model Ultra Librarian 1727040096 CAD Model

Description

The FMK and FCT 172704 series D-sub connectors by Molex are designed for high-density applications.

  • Series: FMK, FCT 172704
  • Accessory Type: Two-Piece Backshell
  • Material: Zinc Die-Cast
  • Plating: Nickel
  • Hardware: Mating Screws 4-40, Assembly Hardware, Cable Clamp and Strain Relief Hardware
  • Shielded: Yes
  • Cable Exit: 180 Degrees
  • Package: Bulk
  • Standard Package: 100
