LTC3545IUD-1#TRPBF: High-Efficiency, Triple Output Synchronous Buck Regulator

The LTC3545IUD-1#TRPBF from Analog Devices Inc. is a cutting-edge power management integrated circuit (IC) designed to deliver high-efficiency and reliable performance for a variety of applications. This triple output synchronous buck regulator is optimized to convert a higher input voltage to lower output voltages with excellent power efficiency, making it an ideal choice for portable devices, industrial equipment, and automotive systems.

With its compact and robust design, the LTC3545IUD-1#TRPBF offers three independent output channels that can deliver up to 800mA of continuous output current per channel. The device operates from an input voltage range of 2.25V to 5.5V, allowing it to be used with common power sources such as single-cell lithium-ion batteries or 5V supply rails.

The LTC3545IUD-1#TRPBF features a high switching frequency of up to 2.25MHz, which allows for the use of small, low-cost external components, including inductors and capacitors. This high-frequency operation also helps to minimize the size of the overall power solution, making it perfect for space-constrained applications.

Engineered for precision and stability, the regulator offers internal compensation that simplifies the design process and reduces external part count. Each of the three outputs is adjustable down to 0.8V with an accuracy of ±1%, ensuring precise voltage regulation for sensitive electronic loads.

Moreover, the LTC3545IUD-1#TRPBF incorporates a range of protective features to enhance system reliability. These include over-temperature protection, over-current protection, and short-circuit protection. The device also offers selectable Burst Mode® operation, which significantly improves efficiency at light loads by reducing quiescent current.

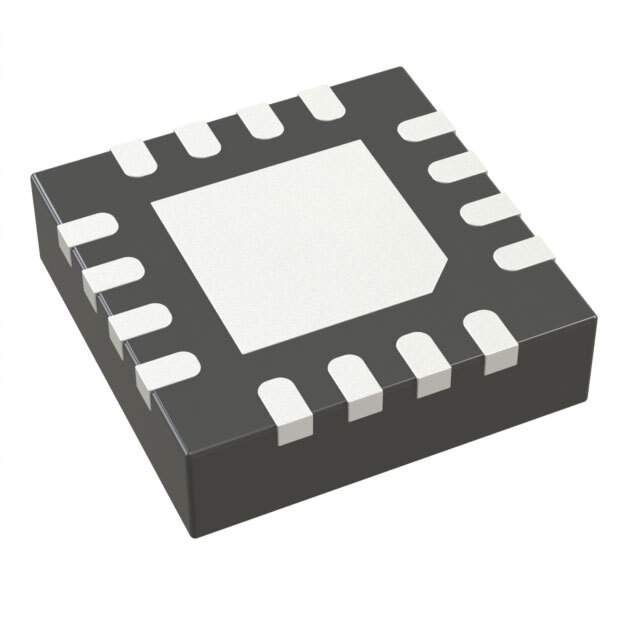

The IC comes in a compact 16-lead QFN package, with a low profile and exposed pad for improved thermal performance. This package is well-suited for automated assembly processes and is RoHS compliant, meeting environmental standards for electronic components.

Overall, the LTC3545IUD-1#TRPBF from Analog Devices Inc. represents a versatile and efficient solution for a wide range of power management requirements, providing designers with a reliable and high-performance option for their multi-output voltage regulation needs.
