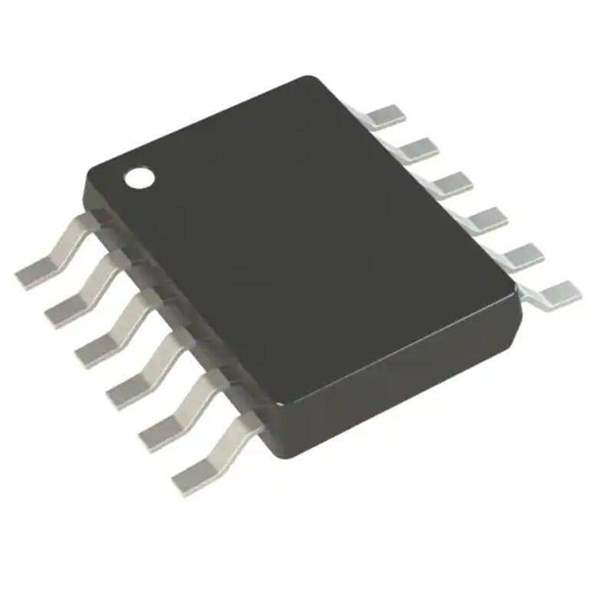

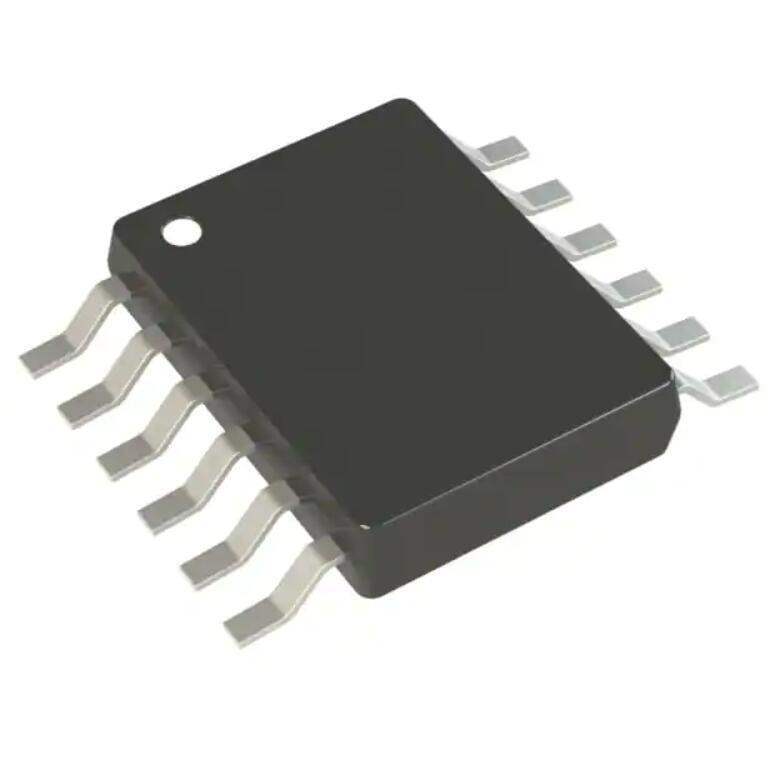

Product Overview: LTC3864HMSE#PBF

The LTC3864HMSE#PBF is a high-performance, step-down DC/DC controller from Analog Devices Inc. This robust component is designed to regulate an output voltage from an input voltage supply that can be higher, equal, or lower than the output voltage, making it ideal for automotive, industrial, and telecommunications applications where a stable and efficient voltage conversion is critical.

Key Features

• Input Voltage Range: The device can operate from an input voltage range of 4V to 38V, providing versatility for different power supply requirements.
• Output Voltage: It offers an adjustable output voltage down to 0.8V, which allows for a wide range of output voltages to meet various application needs.
• Current Mode Operation: The LTC3864HMSE#PBF utilizes current mode control for excellent line and load transient response.
• High Efficiency: With its low quiescent current and high efficiency, it is well-suited for battery-powered systems and energy-conscious applications.
• Thermal Performance: The device is available in a thermally enhanced MSOP-16 package, ensuring reliable operation even in environments with elevated temperatures.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection for safe operation under abnormal conditions.
• No RSENSE: The LTC3864HMSE#PBF can operate without a sense resistor, using the inductor's DCR to sense current, which reduces system cost and complexity.
• Programmable Frequency: The switching frequency is programmable from 50kHz to 900kHz or can be synchronized to an external clock.

Applications

This controller is suitable for a range of applications including:

• Automotive Power Systems
• Industrial Power Supplies
• Telecommunications Infrastructure
• Distributed DC Power Systems
• Battery-Powered Devices

Quality and Reliability

Analog Devices Inc. is known for their commitment to quality and reliability, and the LTC3864HMSE#PBF is no exception. It is designed to meet the stringent requirements of the most demanding environments, ensuring consistent performance and longevity.

Conclusion

The LTC3864HMSE#PBF from Analog Devices Inc. is a versatile and efficient solution for your power management needs. Its wide input voltage range, adjustable output voltage, and comprehensive protection features make it a reliable choice for a variety of applications.
