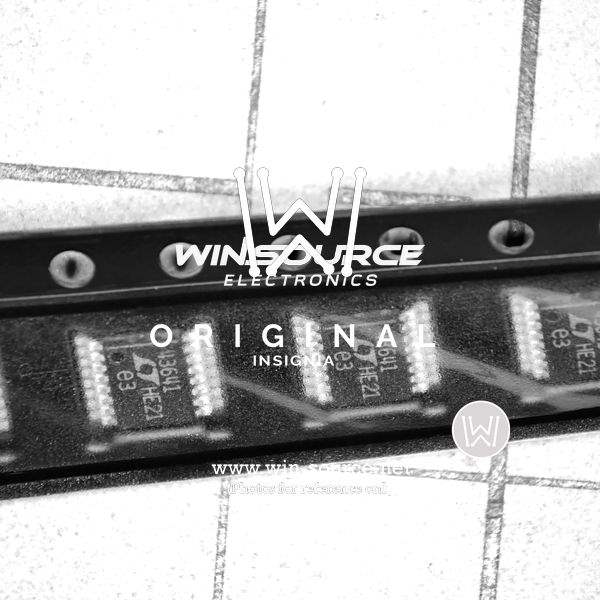

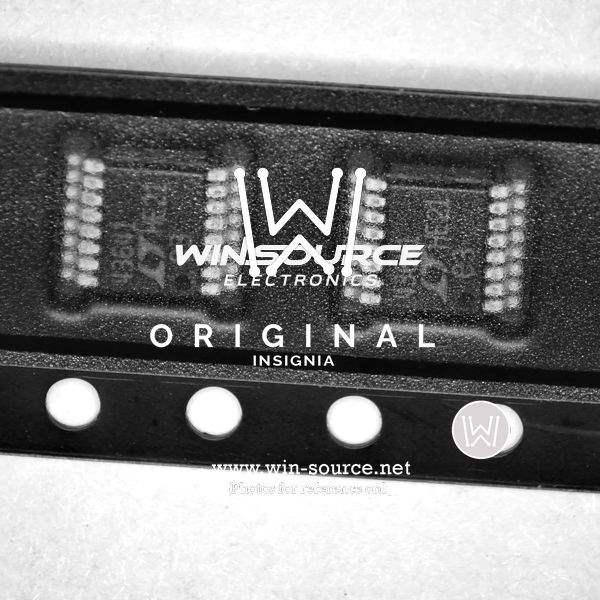

Analog Devices Inc. LTC4364HMS-1#TRPBF Overview

The LTC4364HMS-1#TRPBF is a state-of-the-art surge stopper with ideal diode controller designed by Analog Devices Inc. to provide robust protection against high voltage transients and overcurrent conditions. This advanced integrated circuit (IC) is specifically engineered to safeguard sensitive electronic systems by clamping transient voltages and limiting inrush currents during power-up and fault conditions.

Key Features

• Surge Protection: The device is capable of withstanding surges up to 80V, making it an ideal choice for applications that are exposed to harsh electrical environments, such as automotive, industrial, and avionics systems.
• Overcurrent Protection: It offers overcurrent protection by controlling the gate of an external N-channel MOSFET, thus preventing damage to the MOSFET and downstream components.
• Adjustable Operation: Designers can adjust the start-up and fault timer durations, allowing for a flexible response to varying system requirements.
• Ideal Diode Controller: The LTC4364HMS-1#TRPBF includes an ideal diode controller for power path control, which reduces power dissipation and eliminates the need for a bulky heat sink that a traditional diode would require.

Applications

This IC is suitable for a wide range of applications where power supply protection is critical. This includes:

• Automotive Electronics
• Industrial Control Systems
• Avionics and Aerospace Systems
• Telecommunications Infrastructure
• Medical Equipment

Technical Specifications

The LTC4364HMS-1#TRPBF operates over a wide range of input voltages and offers the following technical specifications:

• Operating Voltage Range: 4V to 80V
• Transient Voltage Protection: Up to 100V
• Operating Temperature Range: -40°C to 125°C
• Package: MSOP-12
• RoHS Compliant

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the LTC4364HMS-1#TRPBF is no exception. This product is designed to meet stringent industry standards, ensuring a reliable performance in even the most demanding conditions.

With its advanced features and robust design, the LTC4364HMS-1#TRPBF from Analog Devices Inc. is an excellent choice for designers looking to enhance the survivability and reliability of their power systems.
