Product Overview: LTM2881HV-5#PBF from Analog Devices Inc.

The LTM2881HV-5#PBF is a high-performance, isolated RS485/RS422 μModule transceiver designed by Analog Devices Inc. to provide robust communication in harsh environments. This device integrates a fully isolated data interface with power, offering a complete solution to meet the stringent requirements of industrial and instrumentation applications. Its high-voltage endurance and comprehensive feature set make it an ideal choice for ensuring reliable data transmission while protecting sensitive microcontroller-based systems from common environmental hazards.

Key Features

• Isolation: The LTM2881HV-5#PBF offers 2500V RMS of galvanic isolation for both data and power lines, effectively guarding against ground loops and surges that can cause system failures or data corruption.
• Integrated Power: This device comes with an onboard, isolated DC/DC converter, providing both isolated power and isolated RS485/RS422 transceiver capability, simplifying design and reducing board space requirements.
• High-Voltage Endurance: It is designed to withstand repeated high-voltage transients, making it suitable for industrial environments where electrical noise and disturbances are common.
• Robust Data Transmission: The transceiver supports data rates up to 20Mbps and features a ±15kV ESD protection on the transceiver interface, ensuring reliable communication even in the presence of electrostatic discharge events.
• Temperature Range: The device operates over the industrial temperature range of -40°C to 105°C, ensuring performance in extreme conditions.

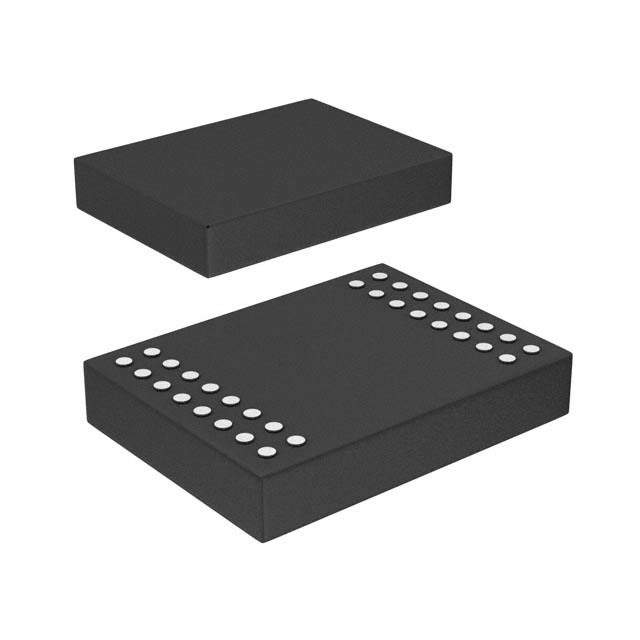

• Package: It is offered in a compact, surface-mount LGA package that is RoHS compliant, enabling easy integration into a variety of designs.

Applications

The LTM2881HV-5#PBF is designed to serve a wide range of applications where isolation and robustness are critical. It is ideal for:

• Industrial Control and Automation
• Factory Automation Networks
• Instrumentation
• Medical Equipment
• Harsh Environment Data Communication

With its combination of isolation, integrated power, and high-speed communication, the LTM2881HV-5#PBF from Analog Devices Inc. is a versatile solution that meets the needs of sophisticated electronic systems requiring reliable isolation and data integrity.
