Analog Devices Inc. LTM2895CY#PBF Product Overview

The LTM2895CY#PBF from Analog Devices Inc. is a high-performance isolated μModule transceiver that provides robust data communication in harsh industrial environments. This component is part of the LTM2895 series, designed to offer a complete galvanic isolation solution for SPI (Serial Peripheral Interface) communication systems.

Key Features

• Galvanic Isolation: The LTM2895CY#PBF features an integrated, isolated power supply and provides up to 2500V_RMS isolation for one minute, ensuring safety and preventing ground loops.
• SPI Interface: It supports SPI data rates up to 20Mbps, making it suitable for high-speed data acquisition and control applications.
• Robustness: With its reinforced isolation, the device is certified for VDE V 0884-10 (reinforced insulation) and UL 1577 (optical isolators) standards, providing confidence in its reliability and safety.
• Integrated Power Supply: The onboard isolated DC/DC converter simplifies the design process by eliminating the need for a separate isolated power supply.

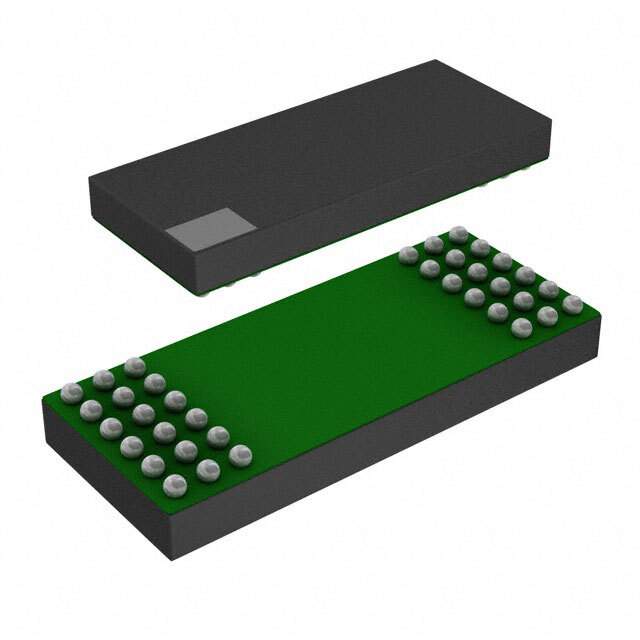

• Compact Footprint: Housed in a compact BGA (ball grid array) package, the LTM2895CY#PBF saves valuable board space and is suitable for space-constrained applications.
• Temperature Range: It operates over a wide temperature range from -40°C to +105°C, ensuring stable performance across various environmental conditions.

Applications

The LTM2895CY#PBF is ideal for applications requiring high levels of electrical isolation, such as:

• Industrial automation and process control
• Data acquisition systems
• Automotive systems
• Medical equipment
• Test and measurement devices

Product Summary

With its advanced isolation technology, high-speed SPI interface, and integrated power supply, the LTM2895CY#PBF from Analog Devices Inc. provides a reliable and efficient solution for interfacing digital systems that require isolation due to differences in ground potential or noise immunity. Its robust design and certifications make it a trusted choice for engineers looking to enhance system safety and integrity in demanding applications.
