Analog Devices Inc. LTM4653IY: High-Efficiency, Dual 25A or Single 50A µModule Regulator

The LTM4653IY from Analog Devices Inc. is a high-performance, dual 25A or single 50A step-down DC/DC µModule (micromodule) regulator. This compact, high-efficiency power solution is designed to meet the rigorous demands of applications requiring a high current, low voltage supply. With its advanced design and integrated components, the LTM4653IY simplifies the design process for engineers, offering a space-saving solution without compromising on performance.

Featuring a wide input voltage range of 4.5V to 15V, the LTM4653IY is versatile and can accommodate various supply voltages. Its output voltage is adjustable from 0.6V to 1.8V, making it suitable for powering low voltage and high current digital ICs such as FPGA, ASIC, microprocessors, and DSPs. The device offers a high efficiency that reduces power loss and improves system reliability.

The LTM4653IY's advanced design includes internal power MOSFETs, a DC/DC controller, compensation circuitry, and inductors in a single package. This level of integration ensures a compact footprint and simplifies the design process, as minimal external components are required. Additionally, the module supports frequency synchronization, output voltage tracking, and has protection features such as overvoltage, overcurrent, and over-temperature protection, further enhancing system safety and reliability.

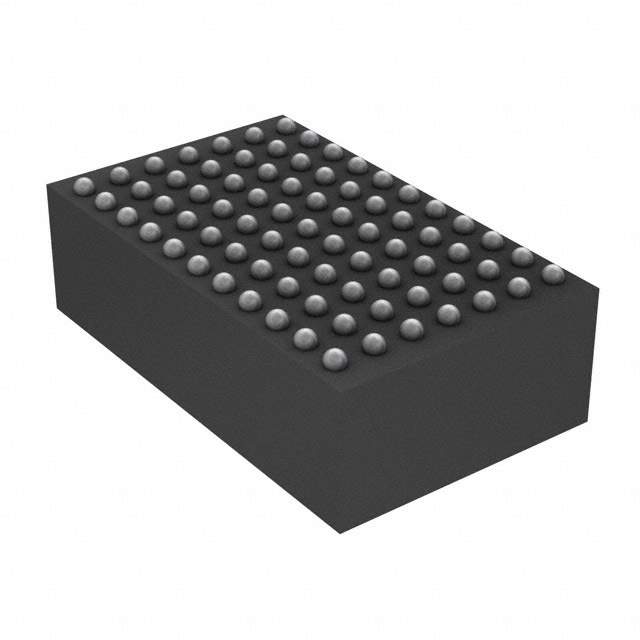

For applications demanding higher current, two LTM4653IY modules can be paralleled for up to 100A output capability. This scalability feature is valuable for power-hungry applications. The device is available in a rugged, thermally enhanced 16mm x 16mm x 5.01mm BGA (ball grid array) package, which is suitable for automated assembly by standard surface mount equipment.

With its robust feature set and ease of use, the LTM4653IY is an ideal solution for telecommunications, data communications, industrial, and medical equipment, as well as other high-density distributed power systems. The product's high efficiency, reliability, and flexibility make it a top choice for engineers looking to optimize their power supply design.
