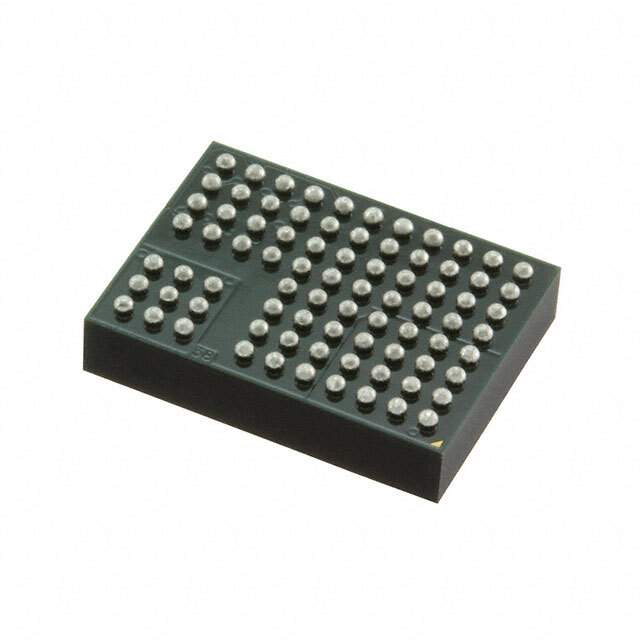

The LTM8026IY is a highly efficient, versatile, and robust DC/DC μModule (micromodule) regulator from Analog Devices Inc. This power management solution integrates the inductor, power switches, DC/DC controller, and all support components into a compact, surface-mount package. Designed to simplify the implementation of power conversion in a wide range of applications, the LTM8026IY is capable of delivering up to 36V input voltage and offers an adjustable output voltage range from 0.8V to 10V, with an output current of up to 5A.

Key Features

• Integrated Design: The LTM8026IY combines several components into one package, reducing design complexity and saving board space.
• Wide Input Voltage Range: With an input voltage range of 6V to 36V, it is suitable for a variety of supply sources, including industrial and automotive applications.
• Adjustable Output Voltage: The output voltage can be set from 0.8V to 10V, making it highly adaptable to the needs of different circuits and devices.
• High Output Current: Capable of delivering up to 5A of continuous output current, it can power a wide range of loads.
• High Efficiency: Its high-efficiency design ensures minimal heat generation and energy loss, which is critical for thermal management in compact systems.
• Overcurrent Protection: Built-in overcurrent protection helps safeguard the module and the downstream circuitry from damage due to excessive current draw.

Applications

The LTM8026IY is ideal for use in a variety of applications that require efficient power conversion and compact design. Its robust feature set makes it especially well-suited for:

• Telecommunications infrastructure
• Industrial equipment
• Automotive systems
• Datacom and storage systems
• Medical devices
• High-density distributed power systems

Conclusion

With its comprehensive integration, the LTM8026IY from Analog Devices Inc. offers designers a simplified solution for power management challenges. Its performance, flexibility, and ease of use make it an excellent choice for a diverse array of applications where space is at a premium and reliability is paramount.
