The LTM8027EY#PBF is a highly integrated, high-efficiency, and versatile DC/DC µModule (micromodule) converter from Analog Devices Inc. This innovative product combines a step-down switching regulator with all the necessary components in a compact, surface-mount package. Designed to simplify the power supply design process, the LTM8027EY#PBF offers an all-in-one solution that minimizes the need for additional external components, thereby reducing design complexity and saving on board space.

Key Features:

• Voltage Range: The module operates within a wide input voltage range of 4.5V to 36V, making it suitable for a variety of applications, including industrial, automotive, and communications systems.
• Output Voltage: It delivers an adjustable output voltage from 0.8V to 10V, which can be set by a single external resistor, providing flexibility in matching the voltage requirements of different loads.
• High Efficiency: With its advanced design and integrated components, the LTM8027EY#PBF achieves high efficiency, which translates to less heat generation and improved system reliability.
• Power Output: The module is capable of delivering up to 4A of continuous output current, making it suitable for powering a wide range of devices.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection, ensuring the safety and longevity of both the power module and the system it powers.

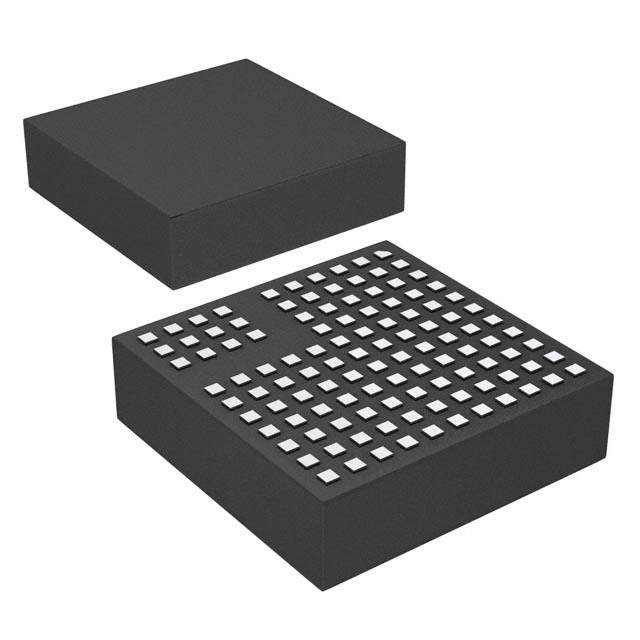

• Compact Size: The LTM8027EY#PBF comes in a 15mm x 15mm x 4.92mm LGA package, which is ideal for applications where space is at a premium.

Applications:

Due to its robust feature set and wide input voltage range, the LTM8027EY#PBF is an excellent choice for use in various applications, such as:

• Telecommunications infrastructure
• Industrial equipment
• Automotive systems
• Datacom and storage systems
• Medical devices
• Point-of-load applications

Analog Devices Inc. is known for their commitment to high-quality and reliable power management solutions, and the LTM8027EY#PBF is no exception. It provides designers with a simplified, efficient, and flexible power management solution that can be easily integrated into a wide range of electronic systems.
