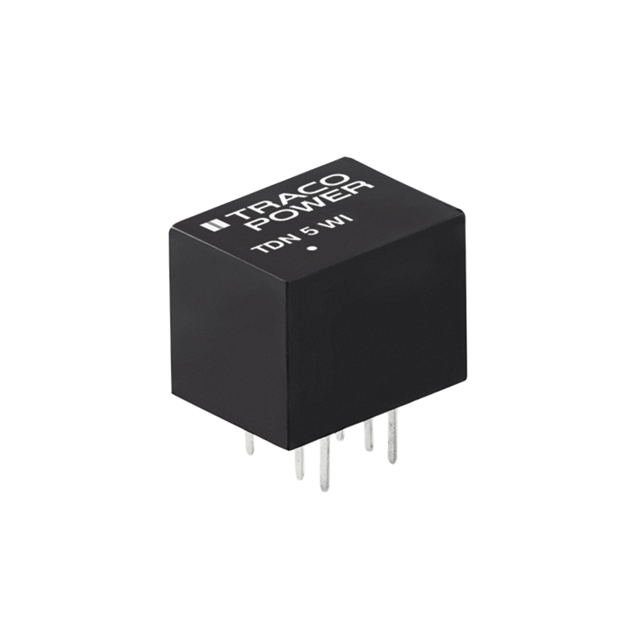

Same model may have multiple batches, images only for reference.

TDN 5-0921WI

Name: TDN 5-0921WI
Brand: Traco Power
SKU: 1335490
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TDN 5-0921WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 4.5V - 13.2V Input
Datasheet	TDN 5-0921WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	500mA, 500mA
Power (Watts)	5 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	80%
Mounting	Through Hole
Case / Package	7-DIP Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 5
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN5-0921WI,TDN 5-0921WI-ND
Standard Package	10
Win Source Part Number	1335490-TDN 5-0921WI
Ultra Librarian 3D Model	Ultra Librarian TDN 5-0921WI CAD Model

Alternative Products

Description

The Traco Power TDN 5-0921WI is a 5W isolated module DC-DC converter with remote on/off and SCP features manufactured by Traco Power.

Voltage Isolation: 1.6 kV
Number of Outputs: two
Maximum Output Current: 500mA each
Input Voltage Range: 4.5V to 13.2V
Output Voltages: 5V and -5V
Mounting: 7-DIP module with 6 leads
Application: ITE (Commercial) applications
Efficiency: 80%
Operating Temperature Range: -40°C to 75°C with derating
