Introducing the LTM8056MPY from Analog Devices Inc.

The LTM8056MPY is a highly versatile and robust micro-module (µModule) from Analog Devices Inc., a leading company in the field of high-performance analog technology. This advanced product is designed to cater to a wide range of power management requirements with its impressive features and specifications.

Efficient Power Conversion

The LTM8056MPY is a complete system-in-package (SiP) that includes a switching regulator, inductors, and support components, all encapsulated within a compact package. This µModule is capable of converting a higher voltage to a lower voltage with high efficiency, making it an ideal choice for applications that require reliable power delivery and energy-saving operation.

Wide Input Voltage Range

One of the standout features of the LTM8056MPY is its wide input voltage range, which spans from 6V to 58V. This flexibility makes it suitable for a variety of input sources, including industrial supplies and automotive batteries. It ensures that the device can operate reliably in environments with fluctuating input voltages.

Adjustable and Regulated Output

The output voltage of the LTM8056MPY is adjustable from 1.2V to 24V, and it can deliver up to 2.5A of continuous output current. The regulation of the output voltage is highly precise, ensuring that connected devices receive a stable and consistent power supply.

High-Temperature Operation

Designed for demanding environments, the LTM8056MPY can operate at junction temperatures ranging from -55°C to +125°C. This makes it a reliable choice for military, aerospace, and industrial applications where extreme temperatures are common.

Advanced Features

The µModule incorporates features such as soft-start, tracking, and protection against overvoltage, overcurrent, and overtemperature conditions. These features contribute to the overall reliability and longevity of the power solution.

Compact and Robust Packaging

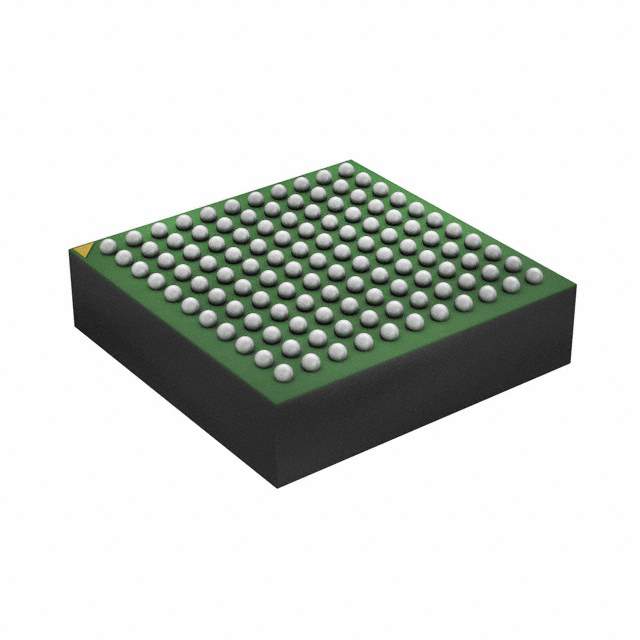

The LTM8056MPY is packaged in a compact, over-molded land grid array (LGA) package measuring 15mm x 15mm x 4.92mm. This small footprint allows for efficient use of board space while providing robust protection for the internal components.

In conclusion, the LTM8056MPY from Analog Devices Inc. is an exceptional choice for designers looking for a high-performance, reliable, and easy-to-use power management solution. Its comprehensive feature set and robust design ensure that it can meet the needs of even the most demanding applications.
