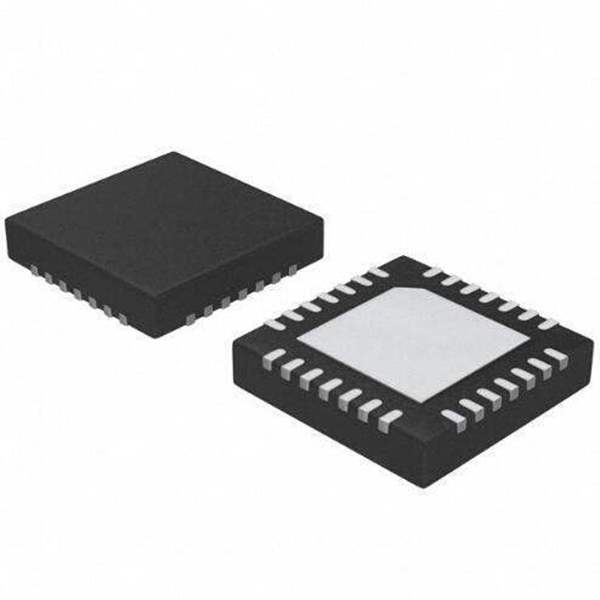

The MAX20021/MAX20022 power-management ICs (PMICs) integrate four low-voltage, high-efficiency, stepdown DC-DC converters. Each of the four outputs is factory or resistor programmable between 1.0V to 4.0V and can deliver up to 1.0A of current. The PMICs operate from 3.0V to 5.5V, making them ideal for automotive pointof-load and post-regulation applications.
The PMICs feature fixed-frequency PWM-mode operation with a switching frequency of 2.2MHz or 3.2MHz. Highfrequency operation allows for an all-ceramic capacitor design and small-size external components. The lowresistance on-chip switches ensure high efficiency at heavy loads while minimizing critical inductances, making the layout a much simpler task with respect to discrete solutions. Internal current sensing and loop compensation reduce board space and system cost.
