Product Overview: MAX4891ETJ+ from Analog Devices Inc.

The MAX4891ETJ+ is a high-performance, low-voltage, quad SPDT (Single Pole Double Throw) switch IC designed and manufactured by Analog Devices Inc. This versatile component is a perfect fit for applications that require routing of high-speed differential signals with minimal signal distortion and attenuation.

Key Features

• Low-Voltage Operation: The device operates at a supply voltage range of 2.7V to 3.6V, which makes it suitable for battery-powered and portable applications.
• High Bandwidth: With a bandwidth greater than 200MHz, the MAX4891ETJ+ can handle high-speed signals without significant loss, ensuring integrity in data transmission.
• Low Crosstalk: The switch has been designed to minimize crosstalk, a critical feature for maintaining signal quality in multiplexed signal environments.
• Low On-Resistance: The on-resistance (RON) of the switch is typically 4Ω, which helps to reduce power loss and improve overall efficiency.
• Ease of Control: The switch control inputs are compatible with TTL and CMOS levels, allowing for easy integration with a wide range of control logic circuits.
• Multiple Switching Configurations: The quad SPDT configuration provides flexibility in routing audio, video, or other differential signals.
• ESD Protection: The device is equipped with ESD protection circuitry, safeguarding it against electrostatic discharge events.

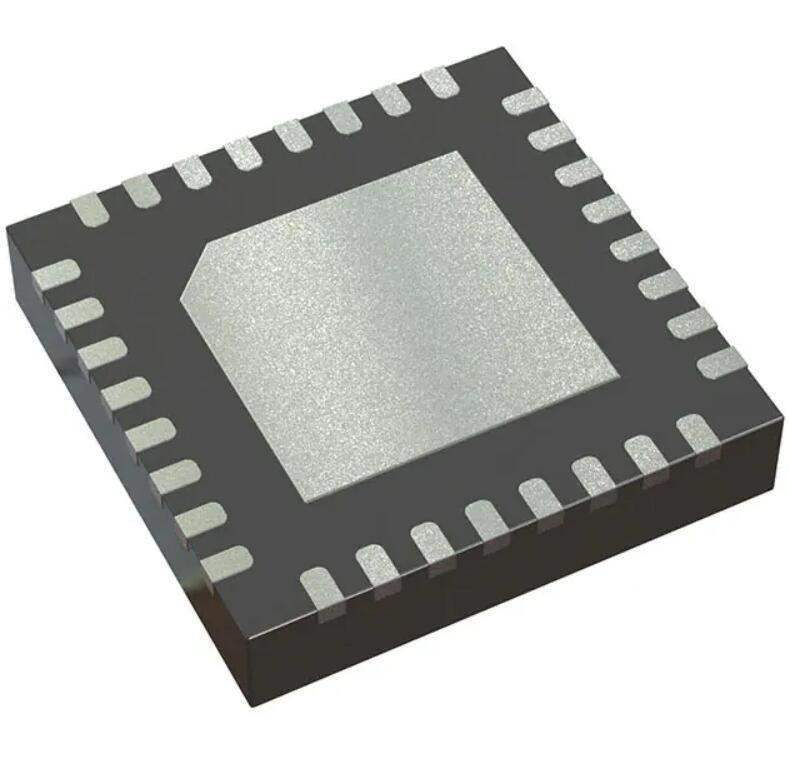

• Compact Package: The MAX4891ETJ+ is offered in a 32-pin TQFN package with an exposed pad, which is ideal for space-constrained applications.

Applications

The MAX4891ETJ+ is an excellent choice for a variety of applications, including:

• Cellular Phones
• Notebook Computers
• Audio and Video Signal Routing
• PCMCIA Cards and USB 2.0 High-Speed Data Switching
• Low-Voltage Data Acquisition Systems
• Networking and Telecommunications Equipment

In summary, the MAX4891ETJ+ from Analog Devices Inc. offers a combination of high-speed signal handling, low-voltage operation, and robust protection features in a compact package. It is an ideal component for designers looking to implement efficient signal switching with minimal signal degradation in their electronic systems.
