Maxim Integrated's MAX8640ZELT18+ Low-Dropout Regulator

The MAX8640ZELT18+ is a high-performance, low-dropout linear regulator designed by Maxim Integrated, offering an efficient solution for power management in a variety of applications. This compact, high-efficiency component is ideal for portable electronics where extended battery life and reduced space are critical factors.

Key Features

• High Efficiency: The device operates with very low quiescent current, which significantly enhances the power efficiency and prolongs battery life in portable applications.
• Low-Dropout Voltage: With its low dropout voltage, the MAX8640ZELT18+ can maintain a stable output voltage even when the input voltage is very close to the output voltage, ensuring reliable operation.
• Stable with Ceramic Capacitors: The regulator is designed to be stable with small, low-cost ceramic capacitors, which helps to reduce the overall footprint and cost of the power supply design.
• Fast Transient Response: The device provides excellent transient response, quickly adapting to changes in load conditions without sacrificing stability.
• Thermal Protection: Integrated thermal shutdown protection ensures the device operates within safe temperature ranges, preventing damage from overheating.
• Adjustable Output Voltage: The output voltage is adjustable, allowing for flexibility in application design to meet specific voltage requirements.

Applications

The MAX8640ZELT18+ is suitable for a wide range of applications, including but not limited to:

• Mobile Phones
• Wireless and DSL Modems
• Portable Media Players
• Handheld Devices
• Digital Cameras
• MP3 Players

Package and Reliability

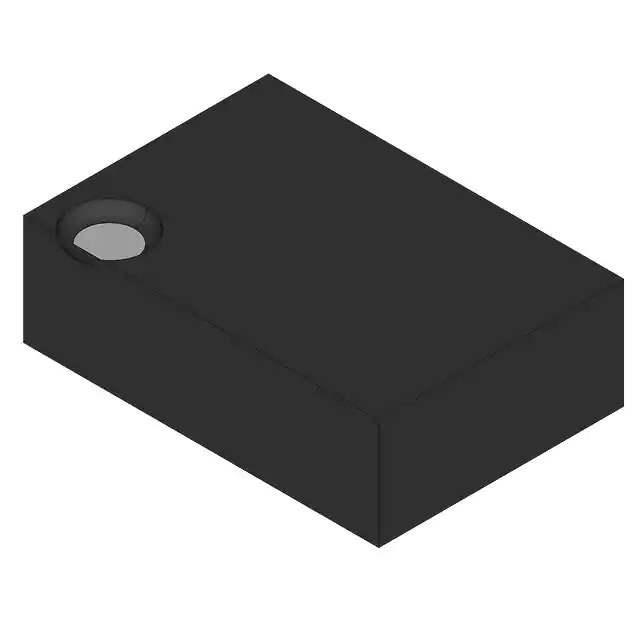

This regulator is offered in a miniature, 6-pin Thin QFN package, which allows for a minimal footprint on the PCB. Its small size and low profile make it particularly useful in space-constrained environments. Maxim Integrated's commitment to quality ensures that the MAX8640ZELT18+ meets the reliability standards required for critical applications.

Overall, the MAX8640ZELT18+ from Maxim Integrated stands out as a reliable and efficient choice for designers looking to optimize power management in their next-generation electronic devices.
