The REF196GSZ is a high-precision voltage reference component manufactured by Analog Devices Inc., a company renowned for its innovative and high-performance semiconductor products. This voltage reference is part of Analog Devices' family of micropower, low dropout voltage references which provide a stable output voltage over a wide current range.

Key Features

• Output Voltage: The REF196GSZ offers a fixed output voltage of 5V, which is ideal for a wide range of applications that require a stable reference voltage.
• Low Dropout Voltage: This device features a low dropout voltage, which ensures that the reference voltage remains stable even with a minimal difference between the supply voltage and the reference voltage.
• High Accuracy: With an initial accuracy of ±0.15%, the REF196GSZ is designed for applications that demand high precision.
• Temperature Coefficient: It has an excellent temperature coefficient, typically 25 ppm/°C, making it reliable over a wide temperature range.
• Low Power Consumption: The REF196GSZ is optimized for low power consumption, which is critical for battery-powered and portable devices.
• Wide Supply Range: The device operates with a supply range from 7V to 12V, providing flexibility in various power supply configurations.

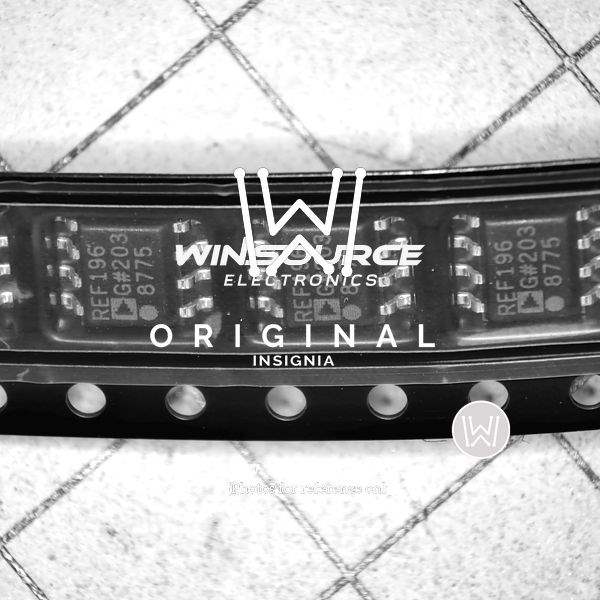

• Package: It is available in an 8-lead SOIC package, which is suitable for compact circuit designs.

Applications

The REF196GSZ is versatile and can be used in a variety of applications, including:

• Precision data acquisition systems
• High-resolution analog-to-digital converters
• Battery-powered equipment
• Industrial control systems
• Medical instruments
• Automotive electronics

In summary, the REF196GSZ from Analog Devices Inc. is a robust, high-accuracy voltage reference that offers stability and precision for applications requiring a reliable voltage reference. Its low power consumption and wide operating temperature range make it an excellent choice for both portable and industrial applications.
