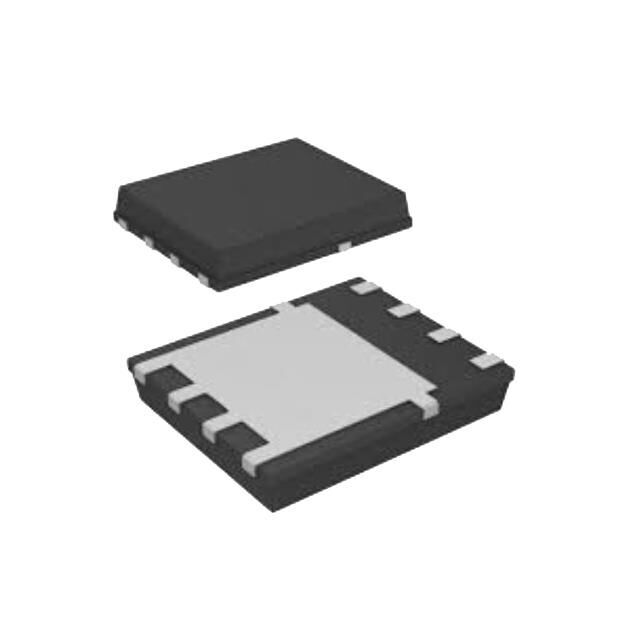

Same model may have multiple batches, images only for reference.
AM7338N Analog Power – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AM7338N

Part No AM7338N
Manufacturer Analog Power
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel 30 V 19A (Ta) 3.5W (Ta) Surface Mount 8-DFN (3x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Analog Power Inc.
Packaging Bulk
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 19A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 6.9mOhm @ 17.6A, 10V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1835 pF @ 15 V
Power Dissipation (Max) 3.5W (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-DFN (3x3)
Package / Case 8-PowerVDFN
RoHS Status RoHS Compliant
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1478549-AM7338N
Ultra Librarian 3D Model Ultra Librarian AM7338N CAD Model
