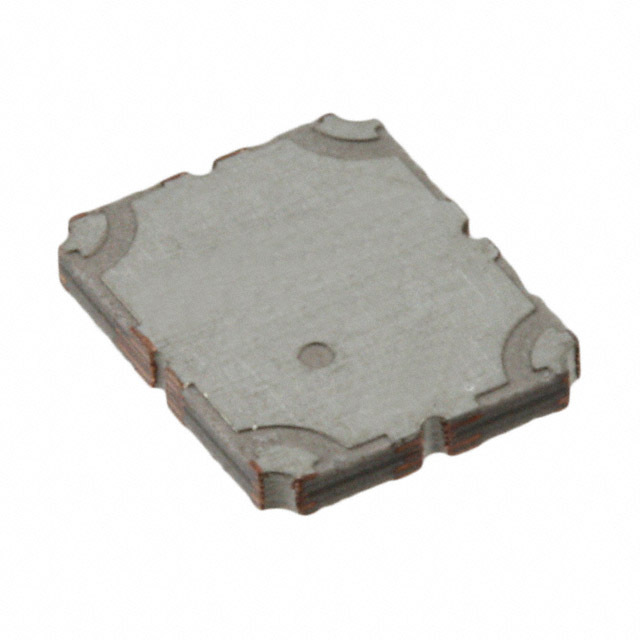

X3C07P1-03S Anaren
Same model may have multiple batches, images only for reference.

X3C07P1-03S

Part No X3C07P1-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 600-900MHZ 3DB / RF Couplers Quadrature Coupling 3dB 0.6GHz to 0.9GHz 4-Pin CSMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Series Xinger III
Packaging Reel package
Coupler Type Standard
Frequency 600MHz ~ 900MHz
Coupling Factor 3dB
Applications General
Insertion Loss 0.2dB
Power - Max 130W
Isolation 23dB
Package 2520 (6450 Metric)
Manufacturer Package 4-SMD
Win Source Part Number 799387-X3C07P1-03S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name X3C07P1-03S
Introduction Date March 31, 2011
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian X3C07P1-03S CAD Model

Description

The Xinger III RF Directional Coupler from Anaren is a high-performance coupler designed for general applications.

  • Frequency Range: 600MHz to 900MHz
  • Maximum Power: 130W
  • Coupler Type: Standard
  • Coupling Factor: 3dB
  • Insertion Loss: 0.2dB
  • Package/Case: 2520 (6450 Metric)
  • Mounting: 4-SMD
  • Isolation: 23dB
  • Estimated EOL Date: 2027
  • Popularity: Medium
  • Supply and Demand Status: Limited
