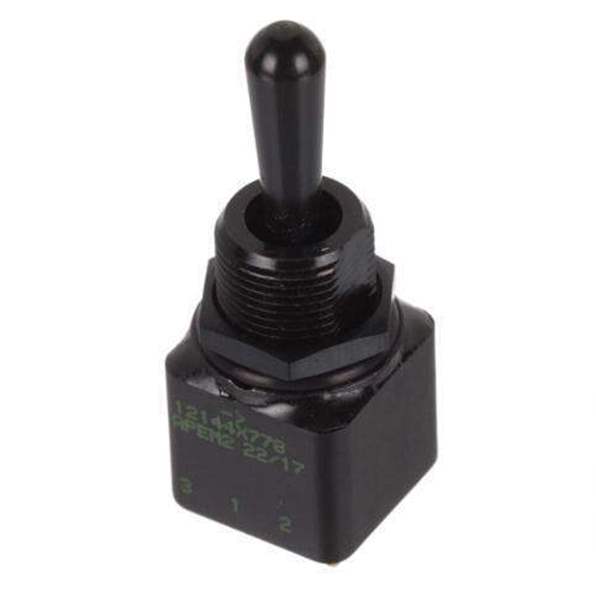

12144X778

Part No 12144X778
Manufacturer Apem Inc.
Catalog Toggle Switches
Description TOGGLE SWITCH 12000 HIGH SPEC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310295-12144X778
Manufacturer APEM Inc.
Category Switches > Toggle Switches
Packaging Bulk
Part Status Active
Mounting Type Panel Mount
Circuit DP3T
Current Rating (Amps) 4A (AC/DC)
Actuator Type Standard Round
Actuator Length 17.30mm
Illumination Non-Illuminated
Ultra Librarian 3D Model Ultra Librarian 12144X778 CAD Model

Description

• Max. current/voltage rating with resistive load : 4A 28VDC • Minimum load : 10mA 50mV, 10µA 5VDC When used above 300mA 28VDC, the gold plating is removed on contact areas and is considered only as a protection against oxidation during storage. • Initial contact resistance : 10 mΩ max. • Insulation resistance : 1.000 MΩ min. at 500VDC
