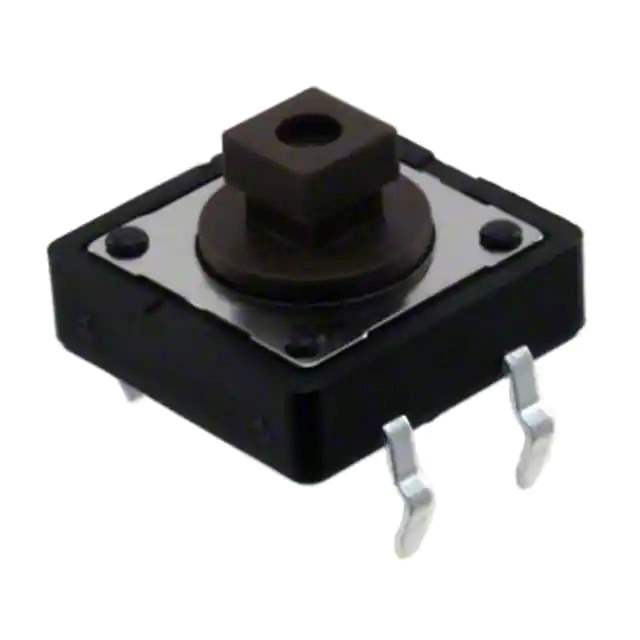

Same model may have multiple batches, images only for reference.

ADTS24NV

Name: ADTS24NV
Brand: Apem Inc.
SKU: 917730
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ADTS24NV
Manufacturer	Apem Inc.
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	APEM Inc.
Series	ADTS
Package	Bulk
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	7.30mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	12.00mm x 12.00mm
Illumination	Non-Illuminated
Operating Force	160gf
Features	Tactile Feedback
Temperature Range - Operating	-25°C ~ 70°C
Actuator Material	Polyamide (PA), Nylon
Switch Travel	0.35mm
Base Product Number	ADTS2
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
California Prop 65	Warning Information
Win Source Part Number	917730-ADTS24NV
Ultra Librarian 3D Model	Ultra Librarian ADTS24NV CAD Model

Description

The ADTS24NV is a tactile switch from APEM Inc.

Manufacturer: APEM Inc.
Product: ADTS24NV
Series: ADTS
Circuit: SPST-NO
Actuator Type: Plunger for Cap
Actuation: Top Actuated
Switch Travel: 0.35mm
Operating Force: 160gf
Contact Rating: 0.05A @ 12VDC
Package: Standard Package of 500 pieces
Mounting: Through-Hole
Outline: 12.00mm x 12.00mm
Temperature Range: -25°C to 70°C
Status: Active
