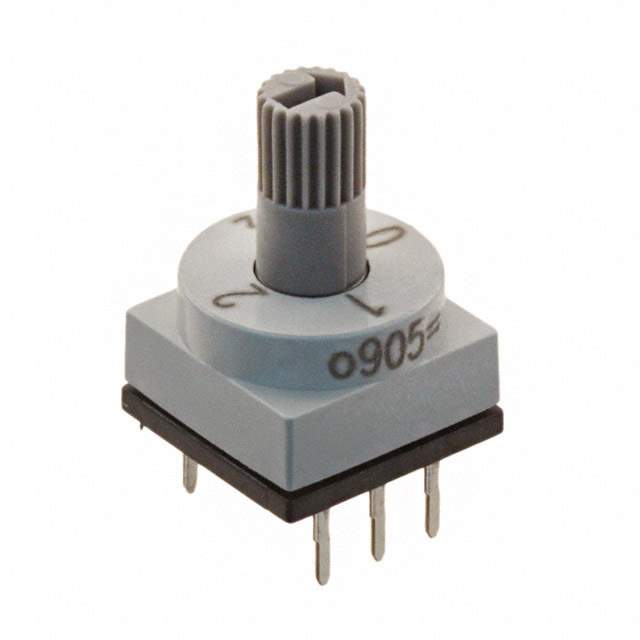

PT65321 Real Image
Same model may have multiple batches, images only for reference.

PT65321

Part No PT65321
Manufacturer Apem Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP SP4T 150MA 24V / Switch DIP N.O./N.C. SP4T 4 Spindle 0.15A 24VDC 1.5VA PC Pins 10000Cycles 2.54mm Thru-Hole
Datasheet
PT65321 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Apem Inc.
Series PT65
Packaging Tray
Circuit SP4T
Number of Positions 4
Current Rating 150mA
Voltage Rating 24VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.543" (13.80mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed - Flux Protection
Body Material Thermoplastic
Length 0.393" (10.00mm)
Operating Temperature Range -20°C ~ 70°C
Mechanical Life 10,000 Cycles
Win Source Part Number 792667-PT65321
Popularity Medium
Supply and Demand Status Limited
Family Name PT65
Introduction Date December 31, 1999
ECCN EAR99
Country of Origin Denmark
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PT65321 CAD Model

Description

The Apem Inc. PT65321 is a sealed flux protection rotary switch with a circuit of SP4T.

  • Circuit: SP4T
  • Voltage Rating: 24VDC
  • Current Rating: 150mA
  • Mechanical Life: 10,000 cycles
  • Operating Temperature Range: -20°C to 70°C
  • Supply and Demand Status: Limited
  • Pitch: 0.100" (2.54mm), full
