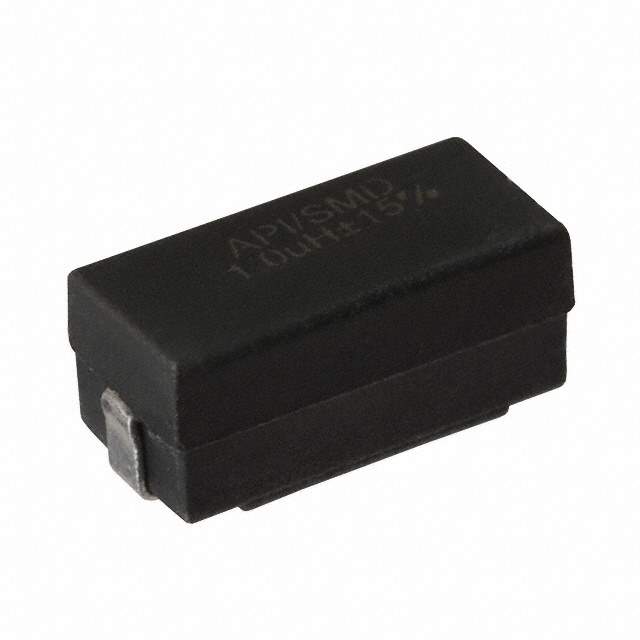

4922R-48L Real Image1 4922R-48L Real Image2
Same model may have multiple batches, images only for reference.
4922R-48L Real Image1 4922R-48L Real Image2
4922R-48L Real Image1 4922R-48L Real Image2
Same model may have multiple batches, images only for reference.

4922R-48L

Part No 4922R-48L
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 8.2MH 77MA 66 OHM SMD / 8.2 mH Unshielded Drum Core, Wirewound Inductor 77 mA 66Ohm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr API Delevan Inc.
Series 4922R
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 mH
Tolerance ±15%
Current Rating (Amps) 77 mA
Current - Saturation (Isat) 77mA
Shielding Unshielded
DC Resistance (DCR) 66Ohm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.505" L x 0.240" W (12.82mm x 6.09mm)
Height - Seated (Max) 0.230" (5.84mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 800 pcs
Win Source Part Number 1380842-4922R-48L
Ultra Librarian 3D Model Ultra Librarian 4922R-48L CAD Model

Description

The 1380842-4922R-48L is a fixed inductor with a drum core and wirewound construction.

  • Inductance: 8.2 mH
  • Tolerance: ±15%
  • Size: 0.505" L x 0.240" W (12.82mm x 6.09mm)
  • Height - Seated (Max): 0.230" (5.84mm)
  • Shielding: Unshielded
  • Package: Tape & Reel (TR)
  • Standard Package: 800 pcs
  • DC Resistance (DCR): 66 Ohm Max
  • Current Rating (Max): 77 mA
  • Operating Temperature: -55°C ~ 125°C
  • REACH: Unaffected
