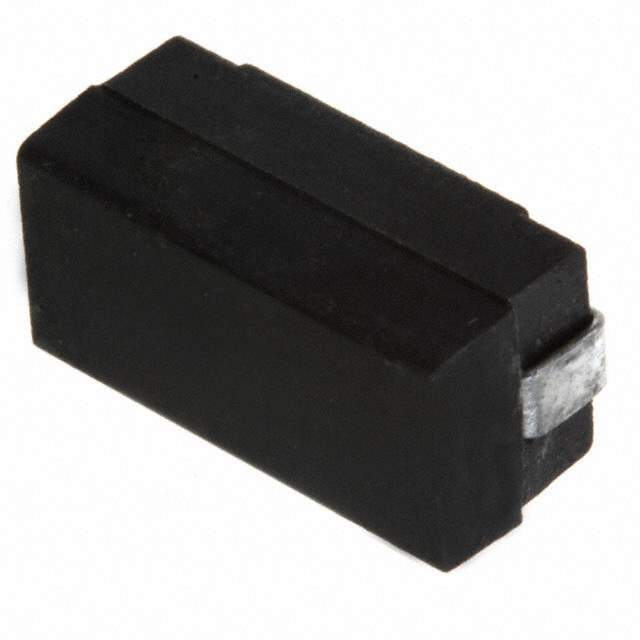

5022-102J

Name: 5022-102J
Brand: API Delevan Inc.
SKU: 1137181
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5022-102J
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1UH 1.125A 290MOHM SMD / 1 µH Unshielded Inductor 1.125 A 290mOhm Max Nonstandard
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	API Delevan Inc.
Series	5022
Package	Tape & Reel (TR)
Material - Core	Phenolic
Inductance	1 µH
Tolerance	±5%
Current Rating (Amps)	1.125 A
Shielding	Unshielded
DC Resistance (DCR)	290mOhm Max
Q @ Freq	50 @ 25MHz
Frequency - Self Resonant	200MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	25 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max)	0.230" (5.80mm)
RoHS Status	RoHS non-compliant
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	DN2260TR,5022102J,5022-102J TR 800,DN2260CT
Standard Package	800
Win Source Part Number	1137181-5022-102J
Ultra Librarian 3D Model	Ultra Librarian 5022-102J CAD Model

Alternative Products

Description

This is a fixed inductor with an unshielded design and a 1 µH inductance, manufactured by API Delevan Inc.

Inductance: 1 µH
Tolerance: ±5%
DC Resistance (Max): 290mOhm
Height: 0.230" (5.80mm)
Dimensions: 0.520" L x 0.250" W (13.21mm x 6.35mm)
Mounting Type: SMD (SMT)
Package/Case: Non-Standard
Core Material: Phenolic
Q @ Freq: 50 @ 25MHz
Self-Resonance Frequency: 200MHz
Current Rating (Max): 1.125 A
Operating Temperature: -55°C to 125°C
Shielding: Unshielded
