Same model may have multiple batches, images only for reference.

S1008R-392K

Name: S1008R-392K
Brand: API Delevan Inc.
SKU: 1339622
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	S1008R-392K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 3.9UH 335MA 1 OHM SMD / 3.9 µH Shielded Inductor 335 mA 1Ohm Max 1008 (2520 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	API Delevan Inc.
Series	S1008R
Package	Tape & Reel
Material - Core	Ferrite
Inductance	3.9 µH
Tolerance	±10%
Current Rating (Amps)	335 mA
Shielding	Shielded
DC Resistance (DCR)	1Ohm Max
Q @ Freq	30 @ 7.9MHz
Frequency - Self Resonant	45MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	7.9 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)

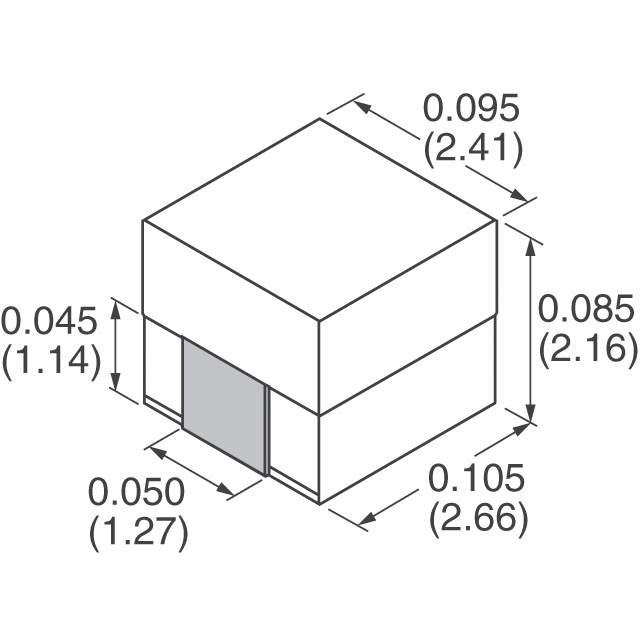

Size / Dimension	0.115" L x 0.105" W (2.92mm x 2.66mm)
Height - Seated (Max)	0.095" (2.41mm)
Standard Package	500
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1339622-S1008R-392K
Ultra Librarian 3D Model	Ultra Librarian S1008R-392K CAD Model

Alternative Products

Description

The API Delevan Inc. 1339622-S1008R-392K is a fixed inductor with a shielded package.

Inductance: 3.9 µH
Tolerance: ±10%
Material: Ferrite
Q @ Freq: 30 @ 7.9MHz
Frequency Self-Resonant: 45MHz
DC Resistance (DCR): 1Ohm Max
Mounting Type: Surface Mount
Height: 0.095" (2.41mm)
Standard Package: 500
Temperature Range: -55°C ~ 125°C
Application: Inductor, Coils, and Chokes
