Same model may have multiple batches, images only for reference.

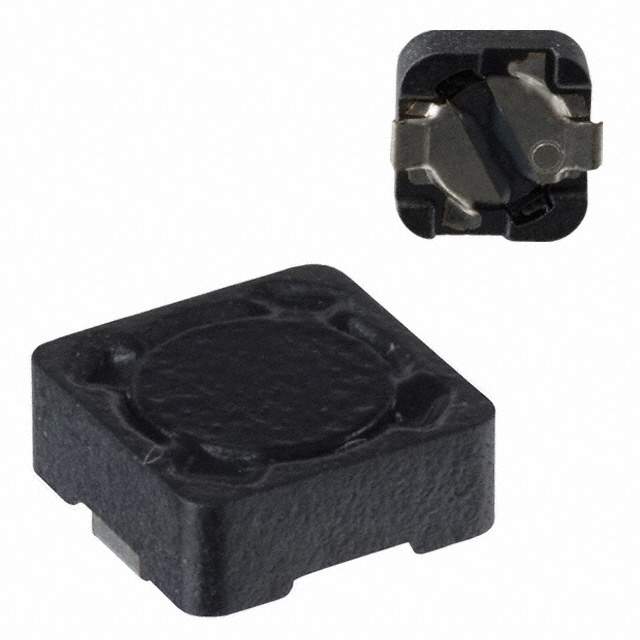

SPD74R-223M Real Image
Same model may have multiple batches, images only for reference.

SPD74R-223M

Part No SPD74R-223M
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2A 110 MOHM SMD / Inductor Power Shielded Wirewound 22uH 20% 1KHz Ferrite 2A 0.11Ohm DCR T/R
Datasheet
SPD74R-223M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer API Delevan Inc.
Series SPD74R
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 2A
Current - Saturation 2A
Shielding Shielded
DC Resistance (DCR) 110 mOhm Max
Operating Temperature Range -55°C ~ 125°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Maximum) 0.185" (4.70mm)
Win Source Part Number 772802-SPD74R-223M
Popularity Medium
Supply and Demand Status Limited
Family Name SPD74R
Introduction Date August 31, 2004
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SPD74R-223M CAD Model

Description

The API Delevan Inc. SPD74R-223M is a wirewound type shielded inductor with an inductance of 22μH and a current rating of 2A.

  • Package: Nonstandard
  • Mounting Type: SMD
  • Tolerance: ±20%
  • DCR: 110 mOhm Max
  • Core Material: Ferrite
  • Test Frequency: 1kHz
  • Height: 0.185" (4.70mm)
  • Dimension: 0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Applications: Inductors, coils, chokes
  • Supply and Demand Status: Limited
  • Alternative Parts: TPI8040CT 220M, B1000AS-220M=P3, CDRH8D43RT125NP-220MC, CDRH80D38DMNNP-220MC
