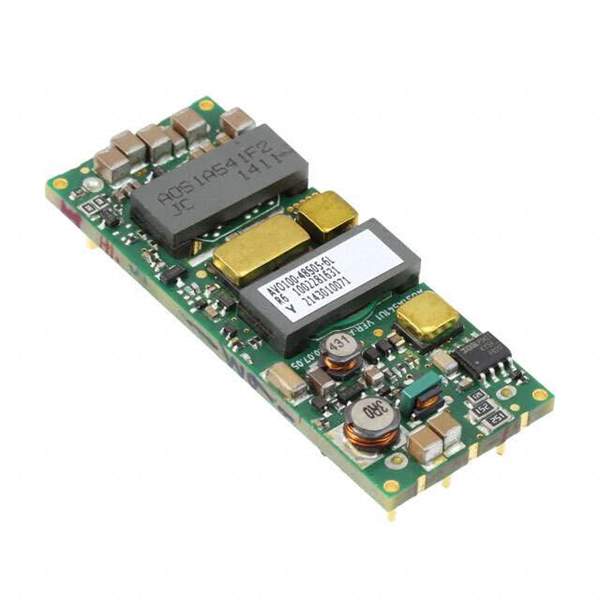

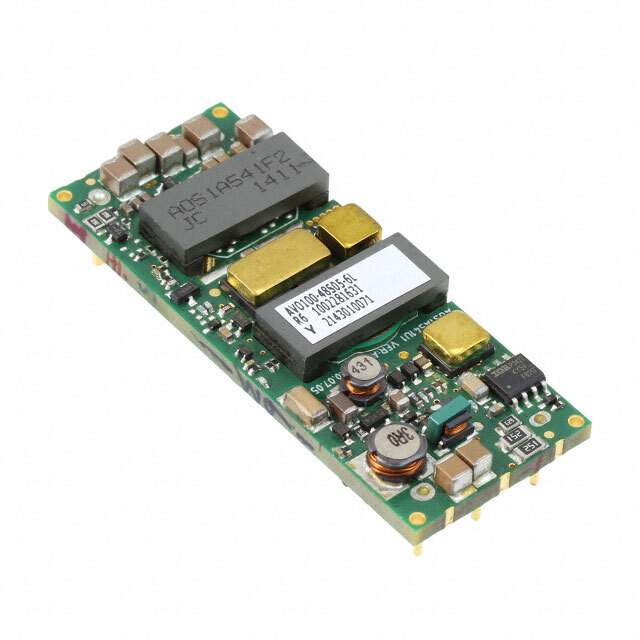

Same model may have multiple batches, images only for reference.

AVO100-48S05-6L

Name: AVO100-48S05-6L
Brand: Artesyn Embedded Technologies
SKU: 1047123
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AVO100-48S05-6L
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 100W / Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Artesyn Embedded Power
Series	AVO100 (100W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	20A
Power (Watts)	100 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	92.8%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Dimension	2.28" L x 0.90" W x 0.37" H (57.9mm x 22.9mm x 9.5mm)
Base Product Number	AVO100
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	454-1577,AVO100-48S05-6L-ND
Standard Package	224
Win Source Part Number	1047123-AVO100-48S05-6L
Ultra Librarian 3D Model	Ultra Librarian AVO100-48S05-6L CAD Model

Alternative Products

Description

The AVO100-48S05-6L is a 100W Isolated Module DC-DC Converter with Remote On/Off, Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP) and Under Voltage Lockout (UVLO) features from Artesyn Embedded Power.

Package: Tray
Standard Package Quantity: 224
Output: One
Maximum Current Output: 20A
Output Voltage: 5V
Input Voltage Range: 36V to 75V
Voltage Isolation: 2.25 kV
Efficiency: 92.8%
Application: Information Technology Equipment (ITE) commercial applications
Mounting: Through Hole
Package/Case Size: 8-DIP Module, 1/8 Brick
Operating Temperature Range: -40°C to 85°C
