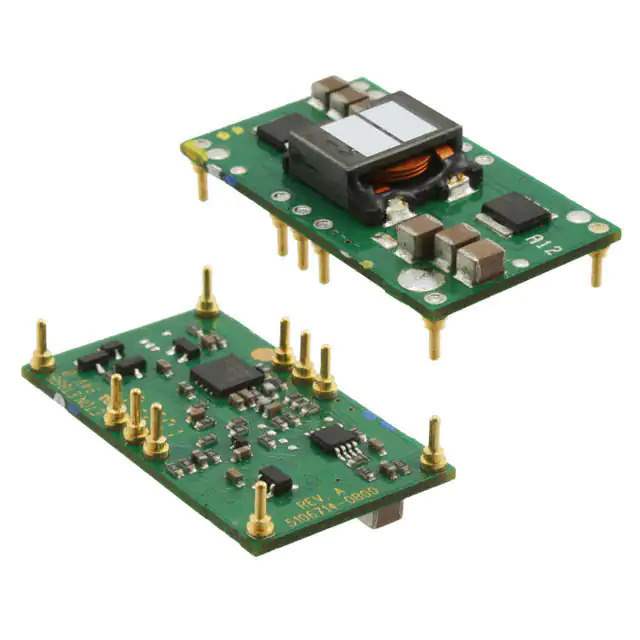

PTH12020WAD

Name: PTH12020WAD
Brand: Artesyn Embedded Technologies
SKU: 657939
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH12020WAD
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 1.2-5.5V 99W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Artesyn Embedded Technologies
Series	PTH12020 (99W)
Package	Tray
Product Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5V
Current - Output (Max)	18A
Power (Watts)	99 W
Applications	ITE (Commercial)
Features	Remote On/Off, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95%
Mounting Type	Through Hole
Package / Case	10-DIP Module
Size / Dimension	1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Base Product Number	PTH12020
Standard Package	30 pcs
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	657939-PTH12020WAD
Ultra Librarian 3D Model	Ultra Librarian PTH12020WAD CAD Model

Description

The PTH12020WAD is a non-isolated PoL (Point of Load) module from Artesyn Embedded Technologies.

Series: PTH12020
Type: Non-Isolated PoL Module
Power Rating: 99W
Maximum Output Current: 18A
Input Voltage Range: 10.8V to 13.2V
Output Voltage Range: 1.2V to 5.5V
Features: Remote On/Off, Overtemperature Protection (OTP), Short Circuit Protection (SCP), and Undervoltage Lockout (UVLO)
Mounting: Through-Hole
Package: 10-DIP Module
Application: ITE (Commercial)
Operating Temperature: -40°C to 85°C
Status: Active
