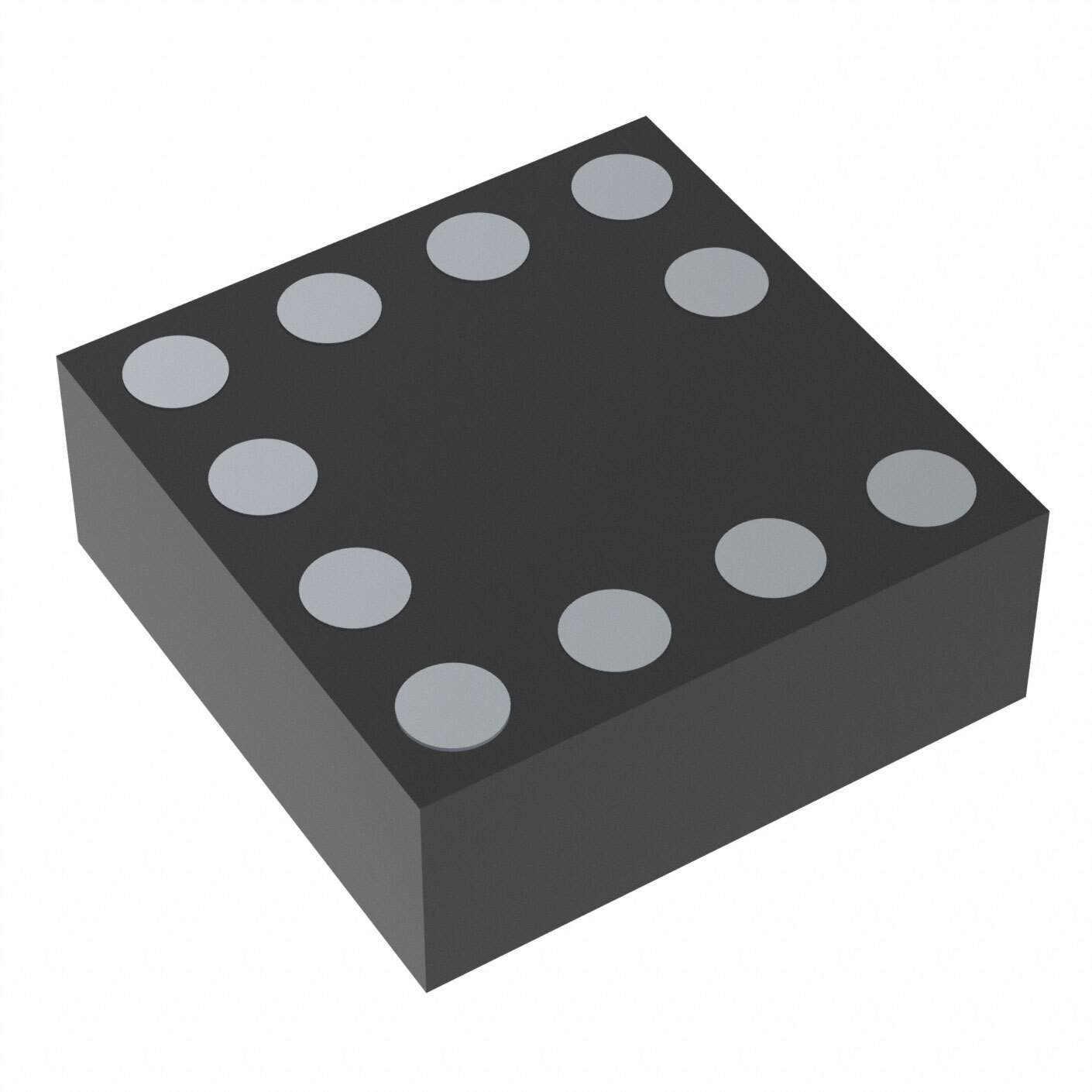

AK09940 Real Image
Same model may have multiple batches, images only for reference.

AK09940

Part No AK09940
Manufacturer Asahi Kasei Microsystems
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description IC 3AXIS ELECT MAGNETOMETER 11LG / Magnetoresistive Sensor X, Y, Z Axis 11-LGA (1.6x1.6)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr Asahi Kasei Microdevices/AKM
Package Tape & Reel
Product Status Obsolete
Technology Magnetoresistive
Axis X, Y, Z
Output Type I2C, SPI
Sensing Range ±1.2mT
Voltage - Supply 1.7V ~ 1.98V
Current - Supply (Max) 2.5mA
Resolution 18 b
Temperature Range - Operating -30°C ~ 85°C
Features Internal Magnet
Supplier Device Package 11-LGA (1.6x1.6)
Mounting SMD (SMT)
Package / Case 11-UFLGA
Other Names AK09940-L,974-1191-6,974-1191-2,974-1191-1
Standard Package 5,000
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235414-AK09940
Ultra Librarian 3D Model Ultra Librarian AK09940 CAD Model

Description

The AK09940 is a magnetoresistive sensor that belongs to the magnetic sensors - linear, compass (ICs) category. It is designed with an internal magnet and is available in tape and reel packaging.

  • Manufacturer: Unknown
  • Product Name: AK09940
  • Category: Magnetic sensors - linear, compass (ICs)
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • Mounting Type: SMD (SMT)
  • Output Type: I2C and SPI
  • Sensing Axes: X, Y, and Z
  • Sensing Range: ±1.2mT
  • Resolution: 18 b
  • Voltage Supply: 1.7V to 1.98V
  • Maximum Supply Current: 2.5mA
  • Package: 11-UFLGA
  • Supplier Device Package: 11-LGA (1.6x1.6)
  • Operating Temperature: -30°C to 85°C
  • ECCN: EAR99
