AK09970D Asahi Kasei Microsystems
Same model may have multiple batches, images only for reference.

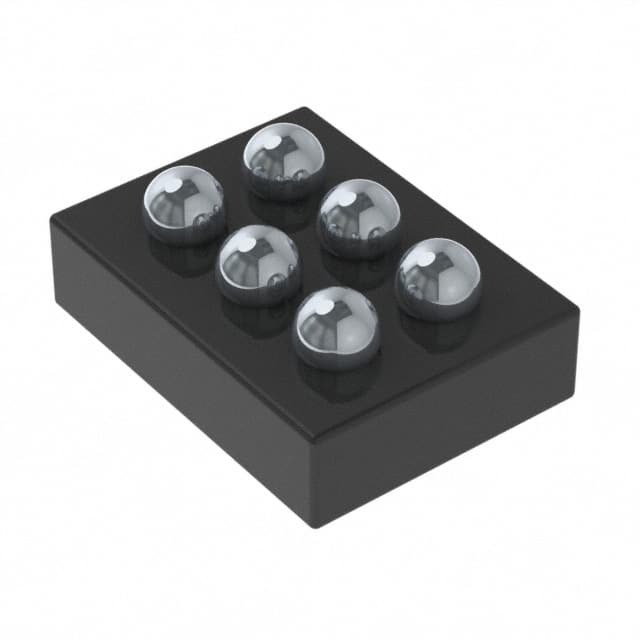

AK09970D

Part No AK09970D
Manufacturer Asahi Kasei Microsystems
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description IC 3D MAGNETIC SENSOR  /  Hall Effect Sensor X, Y, Z Axis 6-WLCSP (1.35x1.35)
Datasheet
AK09970D Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Linear, Compass (ICs)
Mfr Asahi Kasei Microdevices/AKM
Package Tape & Reel
Product Status Obsolete
Technology Hall Effect
Axis X, Y, Z
Output Type I2C
Sensing Range ±36mT
Voltage - Supply 1.7V ~ 3.6V
Resolution 16 b
Temperature Range - Operating -40°C ~ 85°C
Features Selectable Scale
Supplier Device Package 6-WLCSP (1.35x1.35)
Mounting SMD (SMT)
Package / Case 6-UFBGA, WLCSP
Base Product Number AK09970
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 974-AK09970DDKR,974-AK09970DTR,AK09970D-L,974-AK09970DCT,AK09970D\\974-AK09970DTR-ND
Standard Package 10,000
Win Source Part Number 1044282-AK09970D
Ultra Librarian 3D Model Ultra Librarian AK09970D CAD Model

Description

The AK09970D is a linear magnetic sensor that operates on the Hall effect technology from Asahi Kasei Microdevices/AKM.

  • Sensing Range: ±36mT
  • Scale: Selectable
  • Output Type: I2C
  • Resolution: 16 bits
  • Packaging: Tape and Reel
  • Standard Package Size: 10,000
  • Voltage Supply Range: 1.7V to 3.6V
  • Operating Temperature: -40°C to 85°C
  • Package: 6-UFBGA, WLCSP
  • Supplier Device Package: 6-WLCSP (1.35x1.35)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
