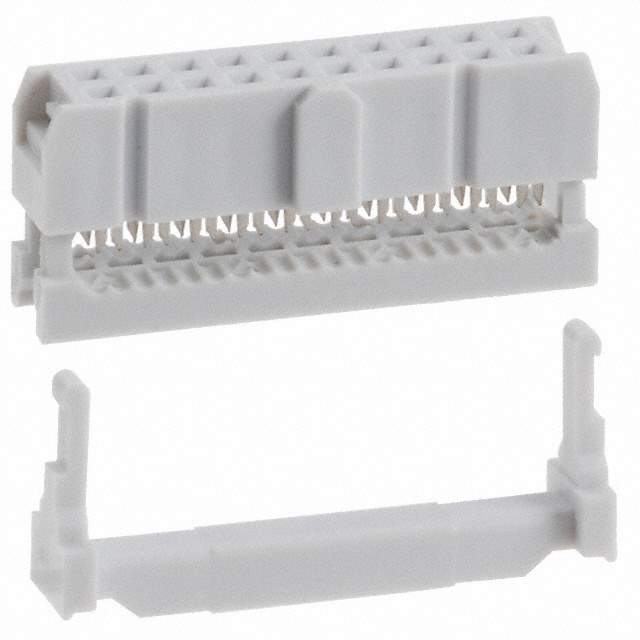

AWP20-7241-T-R Real Image
Same model may have multiple batches, images only for reference.

AWP20-7241-T-R

Part No AWP20-7241-T-R
Manufacturer Assmann WSW Components
Catalog Rectangular Connectors
Description CONN SOCKET 20POS IDC GOLD / 20 Position Rectangular Socket Connector IDC Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr Assmann WSW Components
Package Tray
Product Status Obsolete
Connector Type Socket
Contact Type Female Socket
Number of Positions 20
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Features Feed Through, Polarizing Key, Strain Relief
Contact Finish Gold
Contact Finish Thickness Flash
Color Gray
Standard Package 108
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1339805-AWP20-7241-T-R
Ultra Librarian 3D Model Ultra Librarian AWP20-7241-T-R CAD Model

Description

The Assmann WSW Components 1339805-AWP20-7241-T-R connector is a female socket connector with 20 positions and a pitch of 0.100" (2.54mm).

  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Color: Gray
  • Features: Feed Through, Polarizing Key, Strain Relief
  • Termination: IDC Cable
  • Cable Type: Ribbon Cable
  • Contact Finish: Flash
  • Current Rating: 1.5A
  • Mounting Type: Free Hanging (In-Line)
  • Standard Package: 108
  • Material Flammability Rating: UL94 V-0
