Same model may have multiple batches, images only for reference.

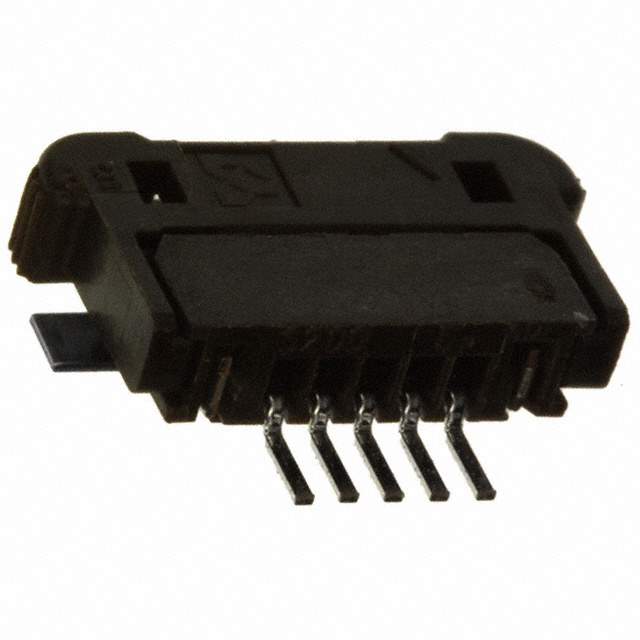

006200505130000+ Real Image
Same model may have multiple batches, images only for reference.

006200505130000+

Part No 006200505130000+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC BOTTOM 5POS 1MM R/A / 5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
006200505130000+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr KYOCERA AVX
Series 6200, Kyocera
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 5
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.114" (2.90mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Plastic
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Current Rating (Amps) 1A
Contact Finish Thickness 3.94µin (0.10µm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1348817-006200505130000+
Ultra Librarian 3D Model Ultra Librarian 006200505130000+ CAD Model

Description

The 6200 series FFC/FPC connector assembly is manufactured by KYOCERA AVX.

  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Positions: 5
  • Pitch: 0.039" (1.00mm)
  • Features: Zero Insertion Force (ZIF)
  • Cable End Type: Straight
  • Current Rating: 1A
  • Voltage Rating: 50V
  • Height Above Board: 0.114" (2.90mm)
  • FFC/FPC Thickness: 0.30mm
  • Packaging: Tape & Reel
  • Standard Package: 1,000
  • Status: Obsolete
