Same model may have multiple batches, images only for reference.

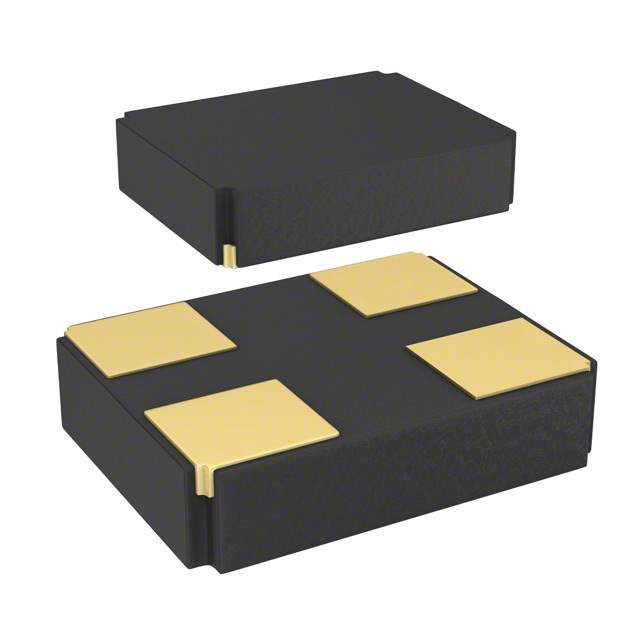

CX3225GB12000D0HEQCC Real Image
Same model may have multiple batches, images only for reference.

CX3225GB12000D0HEQCC

Part No CX3225GB12000D0HEQCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 12.0000MHZ 8PF SMD / 12 MHz ±20ppm Crystal 8pF 250 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr KYOCERA AVX
Series CX3225GB, Kyocera
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 250 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 478-CX3225GB12000D0HEQCC,478-CX3225GB12000D0HEQCCCT,1254-1166-6-ND,478-CX3225GB12000D0HEQCCDKR,1253-1166-6-ND,478-CX3225GB12000D0HEQCC-ND,1253-1166-6,1253-1166-1,1253-1166-2,1253-1166-2-ND,1253-1166-1-ND,478-CX3225GB12000D0HEQCCTR,1254-1166-1,1254-1166-1-ND,1254-1166-6
Standard Package 3,000
Win Source Part Number 1053812-CX3225GB12000D0HEQCC
Ultra Librarian 3D Model Ultra Librarian CX3225GB12000D0HEQCC CAD Model

Description

The CX3225GB series MHz crystal from Kyocera AVX has a frequency of 12 MHz and a frequency tolerance of ±20ppm.

  • Frequency: 12 MHz
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 250 Ohms
  • Load Capacitance: 8pF
  • Frequency Stability: ±30ppm
  • Operating Mode: Fundamental
  • Package/Case Size: 4-SMD, no lead
  • Height: 0.035 inches (0.90mm) when seated
  • Packaging: Tape and reel
  • Standard Package: 3,000
  • Operating Temperature Range: -10°C to 70°C
  • REACH Affected: Yes
  • ECCN: EAR99
  • Manufacturer: Kyocera AVX
