Same model may have multiple batches, images only for reference.

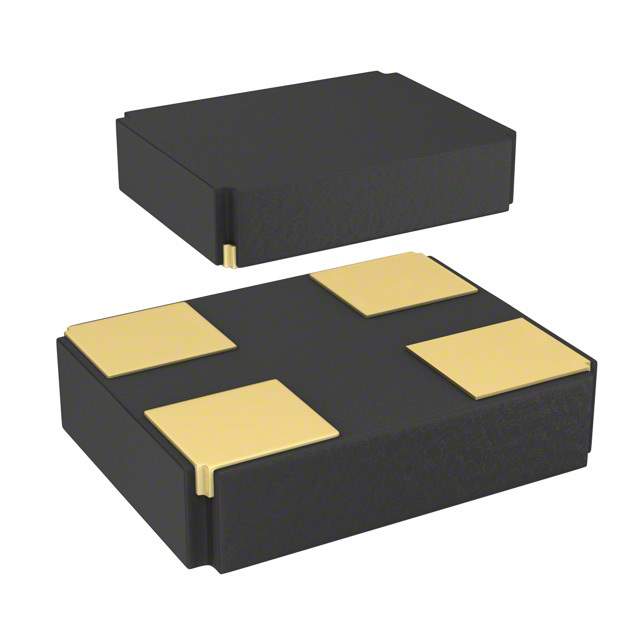

CX3225GB48000D0HPQCC Real Image
Same model may have multiple batches, images only for reference.

CX3225GB48000D0HPQCC

Part No CX3225GB48000D0HPQCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 48.0000MHZ 8PF SMD / 48 MHz ±20ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr KYOCERA AVX
Series CX3225GB, Kyocera
Package Tape & Reel
Type MHz Crystal
Frequency 48 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 1253-1226-1-ND,1254-1226-1,1253-1226-1,1253-1226-2-ND,478-CX3225GB48000D0HPQCCDKR,1253-1226-6-ND,1253-1226-2,478-CX3225GB48000D0HPQCCCT,478-CX3225GB48000D0HPQCC,1253-1226-6,1254-1226-6,1254-1226-6-ND,1254-1226-1-ND,478-CX3225GB48000D0HPQCCTR,478-CX3225GB48000D0HPQCC-ND
Standard Package 3,000
Win Source Part Number 977348-CX3225GB48000D0HPQCC
Ultra Librarian 3D Model Ultra Librarian CX3225GB48000D0HPQCC CAD Model

Description

The 977348-CX3225GB48000D0HPQCC electronic component is a MHz crystal manufactured by KYOCERA AVX.

  • Frequency: 48 MHz
  • Frequency Stability: ±30ppm
  • ESR (Equivalent Series Resistance): 50 ohms
  • Frequency Tolerance: ±20ppm
  • Height (Seated): 0.035" (0.90mm)
  • Package: Tape and Reel
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Operating Temperature Range: -40°C to 85°C
