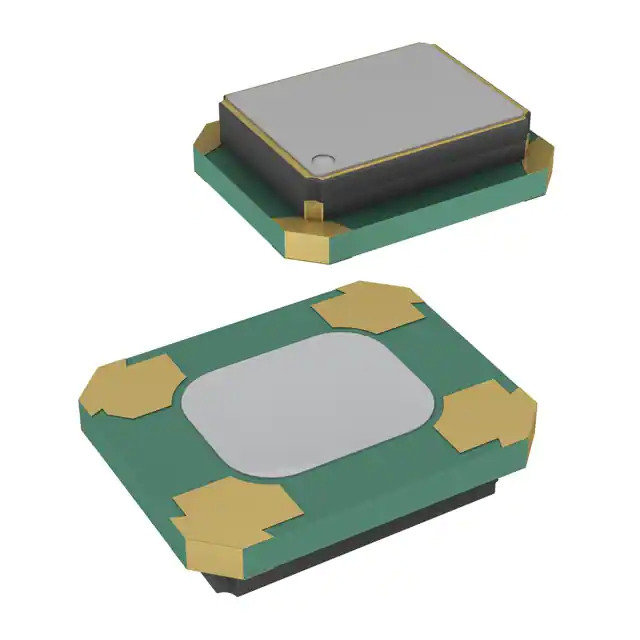

KC2520Z24.0000C1KX00

Part No KC2520Z24.0000C1KX00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ CMOS SMD / 24 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr KYOCERA AVX
Series KC2520Z
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±20ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7.3mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 5µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354037-KC2520Z24.0000C1KX00
Ultra Librarian 3D Model Ultra Librarian KC2520Z24.0000C1KX00 CAD Model

Description

The KYOCERA AVX KC2520Z series oscillator is a standby (power down) crystal oscillator with a frequency of 24MHz. KYOCERA AVX

  • Frequency: 24MHz
  • Voltage Supply: 1.71V to 3.63V
  • Current Supply: 7.3mA
  • Oscillator Type: XO (Standard)
  • Mounting Type: 4-SMD, no lead
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.031" (0.80mm)
  • REACH: unaffected
  • ECCN: EAR99
