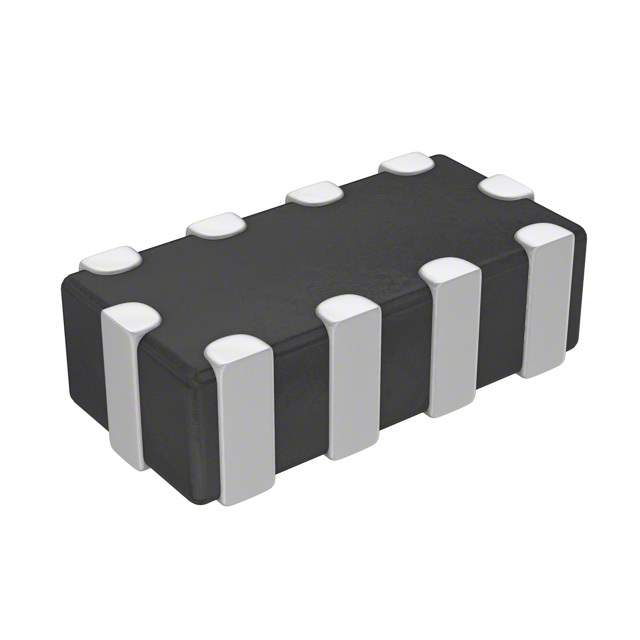

Same model may have multiple batches, images only for reference.

KNA16300C16MA7TS

Name: KNA16300C16MA7TS
Brand: AVX Corp/Kyocera Corp
SKU: 1067642
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	KNA16300C16MA7TS
Manufacturer	AVX Corp/Kyocera Corp
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC 16PF 300MHZ SMD / LC EMI Filter Order Low Pass Channel C = 16pF 35 mA 0603 (1608 Metric)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>EMI/RFI Filters (LC, RC Networks)
Mfr	KYOCERA AVX
Series	KNA, Kyocera
Package	Tape & Reel (TR)
Product Status	Obsolete
Type	Low Pass
Technology	LC
Center / Cutoff Frequency	300MHz (Cutoff)
Attenuation Value	25dB @ 800MHz ~ 1GHz
Current	35 mA
Values	C = 16pF
ESD Protection	No
Temperature Range - Operating	-25°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage - Rated	25V
Package / Case	0603 (1608 Metric)
Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height	0.024" (0.60mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	KNA16300C16MA7TS-ND,478-KNA16300C16MA7TS
Standard Package	7,000
Win Source Part Number	1067642-KNA16300C16MA7TS
Ultra Librarian 3D Model	Ultra Librarian KNA16300C16MA7TS CAD Model

Alternative Products

Description

The KYOCERA AVX KNA series is a low pass EMI/RFI filter designed for data lines for mobile devices.

Series: KNA
Type: Low Pass EMI/RFI Filter
Application: Data Lines for Mobile Devices
Cutoff Frequency: 300MHz
Attenuation: 25dB @ 800MHz ~ 1GHz
Voltage: 25V
Current: 35 mA
Packaging: Tape and Reel
Height: 0.024" (0.60mm)
Temperature Range: -25°C ~ 85°C
Package/Case Size: 0603 (1608 Metric)
Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
Manufacturer: KYOCERA AVX
