Same model may have multiple batches, images only for reference.

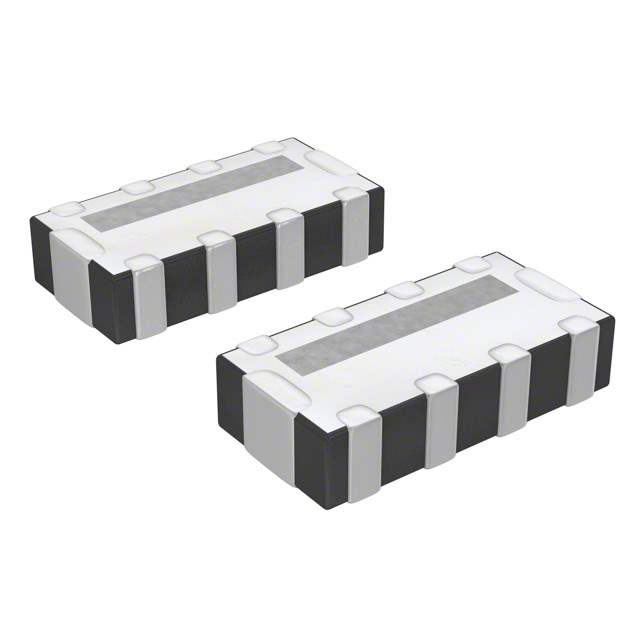

KNF32025-W3 Real Image
Same model may have multiple batches, images only for reference.

KNF32025-W3

Part No KNF32025-W3
Manufacturer AVX Corp/Kyocera Corp
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 235PF 25MHZ SMD
Datasheet
KNF32025-W3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Technology LC
Center / Cutoff Frequency 25MHz (Cutoff)
Attenuation Value 20dB @ 200MHz to 600MHz
Current 200mA
Values C = 235pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 205857-KNF32025-W3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KNF32025-W3 CAD Model

Description

The AVX Corp/Kyocera Corp KNF32025-W3 is an electronic component that is ideal for data lines for mobile devices.

  • It features a low pass type and a voltage rating of 25V.
  • This component is mounted using SMD (SMT) technology, and its height is 0.039" (1.00mm).
  • Current rating: 200mA
  • Attenuation value: 20dB @ 200MHz to 600MHz.
  • Center/cutoff frequency: 25MHz (Cutoff)
  • Resistance channel (Ohms): not specified.
  • The supply and demand status is balanced, and it is categorized under filters.
