Same model may have multiple batches, images only for reference.

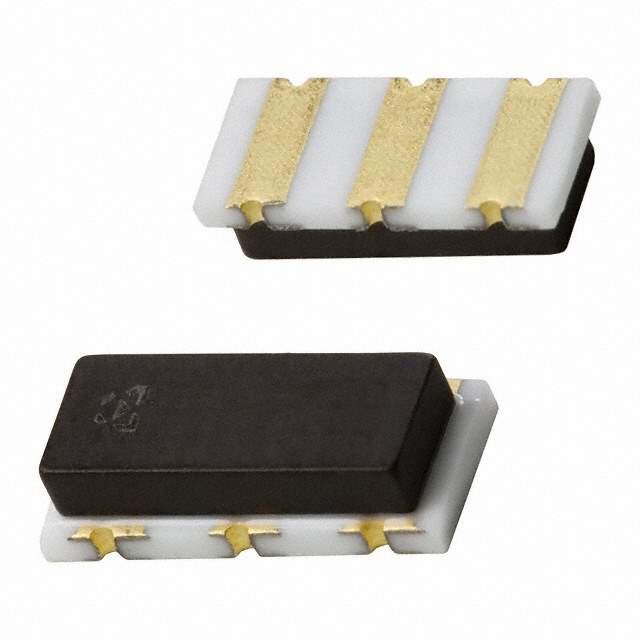

PBRC4.91HR50X000 Real Image
Same model may have multiple batches, images only for reference.

PBRC4.91HR50X000

Part No PBRC4.91HR50X000
Manufacturer AVX Corp/Kyocera Corp
Catalog Resonators
Description CERAMIC RES 4.9100MHZ 30PF SMD / 4.91 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.5% -40°C ~ 85°C Surface Mount
Datasheet
PBRC4.91HR50X000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Resonators
Mfr KYOCERA AVX
Series PBRC-H, Kyocera
Package Tape & Reel
Product Status Obsolete
Type Ceramic
Frequency 4.91 MHz
Frequency Stability ±0.5%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 30 pF
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 3-SMD, Non-Standard
Dimension 0.291" L x 0.134" W (7.40mm x 3.40mm)
Height 0.079" (2.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1253-1014-1,1253-1014-2,478-PBRC4.91HR50X000,1253-1014-2-ND,1253-1014-1-ND,478-PBRC4.91HR50X000DKR,1253-1014-6-ND,PBRC491HR50X000,478-PBRC4.91HR50X000-ND,478-PBRC4.91HR50X000CT,478-PBRC4.91HR50X000TR,1253-1014-6
Standard Package 2,000
Win Source Part Number 1132538-PBRC4.91HR50X000
Ultra Librarian 3D Model Ultra Librarian PBRC4.91HR50X000 CAD Model

Description

The Kyocera PBRC-H series ceramic resonator is a high-quality component that is perfect for various electronic applications.

  • Feature: built-in capacitor
  • Mounting: tape and reel
  • Capacitance: 30 pF
  • Frequency: 4.91 MHz
  • Frequency Tolerance: ±0.5%
  • Frequency Stability: ±0.5%
  • Operating Temperature Range: -40°C to 85°C
  • Height: 0.079 inches (2.00mm)
  • Package/Case: 3-SMD, non-standard
  • Dimensions: 0.291 inches L x 0.134 inches W (7.40mm x 3.40mm)
  • Alternative Part: PBRC-4.91HR50X000
  • Status: obsolete
