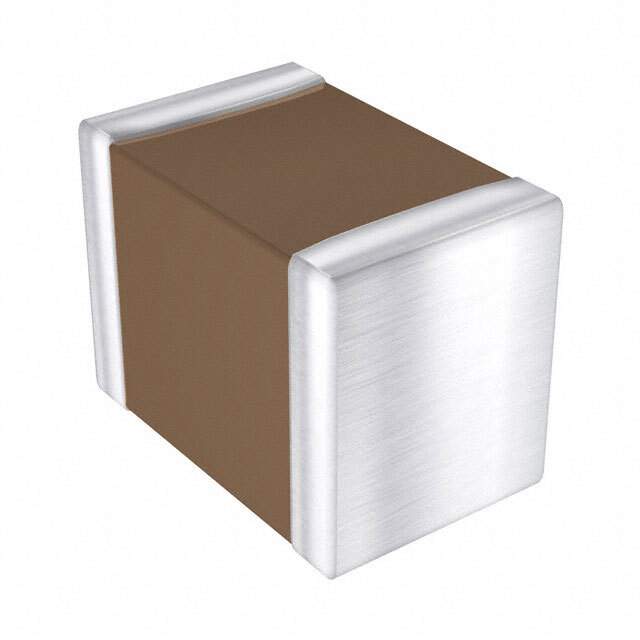

QM054D226MAT2A Real Image
Same model may have multiple batches, images only for reference.

QM054D226MAT2A

Part No QM054D226MAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 22UF 4V X5R 0805 / 22 µF ±20% 4V Ceramic Capacitor X5R 0805 (2012 Metric)
Datasheet
QM054D226MAT2A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 4V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.057" (1.45mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 478-6237-6,478-6237-2,478-6237-1,QM054D226MAT2A/3K
Standard Package 3,000
Win Source Part Number 1329500-QM054D226MAT2A
Ultra Librarian 3D Model Ultra Librarian QM054D226MAT2A CAD Model

Description

The 1329500-QM054D226MAT2A is a ceramic capacitor from KYOCERA AVX designed for general purpose use.

  • Capacitance: 22 µF
  • Voltage Rating: 4V
  • Tolerance: ±20%
  • Temperature Coefficient: X5R
  • Temperature Range: -55°C ~ 85°C
  • Package Type: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Thickness: 0.057" (1.45mm)
  • Package: Reel
  • Standard Package: 3,000 units
  • Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.24.0020
  • Other Part Numbers: 478-6237-6, 478-6237-2, 478-6237-1, and QM054D226MAT2A/3K
