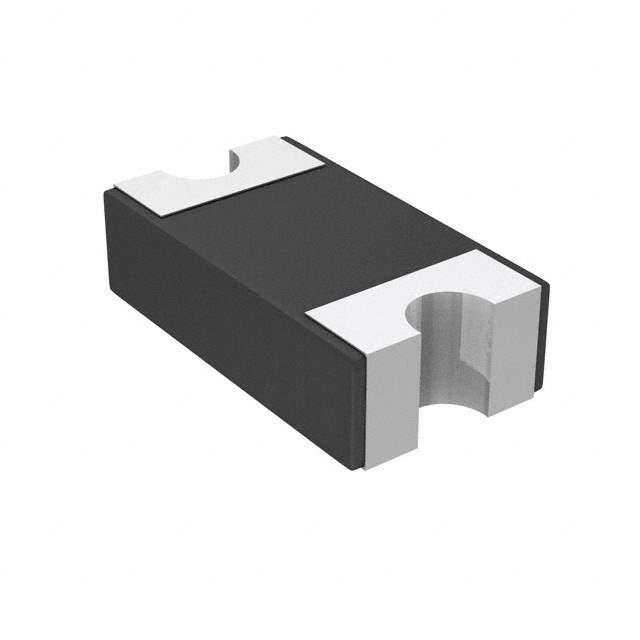

SD1206T040S1R0 Real Image
Same model may have multiple batches, images only for reference.

SD1206T040S1R0

Part No SD1206T040S1R0
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Datasheet
SD1206T040S1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206 (3216 Metric)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD1206T040S1R0
Other Names 2266-SD1206T040S1R0,478-7809-6,478-7809-2,478-7809-1
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282486-SD1206T040S1R0
Ultra Librarian 3D Model Ultra Librarian SD1206T040S1R0 CAD Model

Description

The SD1206T040S1R0 is a Schottky diode designed for use in electronic circuits.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 1A
  • Forward Voltage: 500 mV @ 1A
  • Reverse Leakage Current: 200 µA @ 40V
  • Temperature Range: -55°C to 125°C
  • Package: 1206 (3216 Metric) package
  • Mounting: Tape and Reel
  • Standard Package: 3,000
  • Manufacturer: KYOCERA AVX
