Same model may have multiple batches, images only for reference.

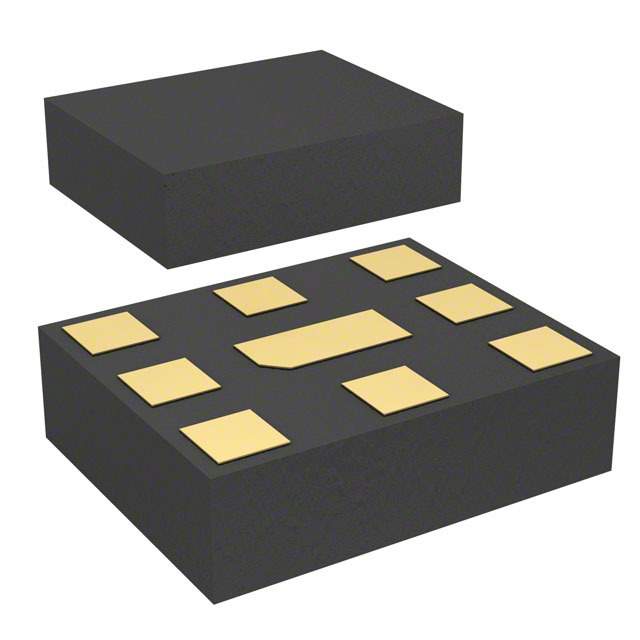

SD25-1950R9UBQ1 Real Image
Same model may have multiple batches, images only for reference.

SD25-1950R9UBQ1

Part No SD25-1950R9UBQ1
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Diplexers
Description DUPLEXER SAW 1950MHZ SMD
Datasheet
SD25-1950R9UBQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 1.92GHz to 1.98GHz / 2.11GHz to 2.17GHz
Low Band Attenuation (min / max dB) 15dB / 45dB
High Band Attenuation (min / max dB) 28dB to 45dB
Mounting SMD (SMT)
Dimension 9-SMD, No Lead
Win Source Part Number 1094984-SD25-1950R9UBQ1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD25-1950R9UBQ1 CAD Model

Description

The AVX Corp/Kyocera Corp SD25-1950R9UBQ1 is an SMD (SMT) mounting type ceramic capacitor that belongs to the RF/IF and RFID category.

  • Frequency Range (Low Band): 1.92GHz to 1.98GHz
  • Frequency Range (High Band): 2.11GHz to 2.17GHz
  • Attenuation (Low Band): 15dB to 45dB
  • Attenuation (High Band): 28dB to 45dB
  • Package: 9-SMD, No Lead
  • Status: active
