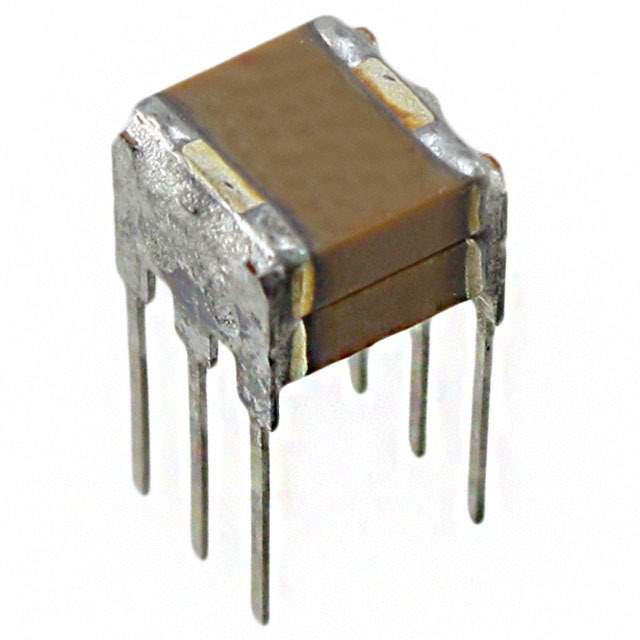

SMX55C105KAN240 Real Image
Same model may have multiple batches, images only for reference.

SMX55C105KAN240

Part No SMX55C105KAN240
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SMX55C105KAN240 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SMX
Package Bulk
Product Status Obsolete
Capacitance 1 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R (VHT)
Temperature Range - Operating -55°C ~ 200°C
Features Low ESL (Stacked), High Temperature
Applications SMPS Filtering
Mounting Type Through Hole
Package / Case Stacked DIP, 6 Lead
Dimension 0.250" L x 0.300" W (6.35mm x 7.62mm)
Height - Seated (Max) 0.240" (6.10mm)
Lead Spacing 0.250" (6.35mm)
Other Names 478-5596
Standard Package 70
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1304665-SMX55C105KAN240
Ultra Librarian 3D Model Ultra Librarian SMX55C105KAN240 CAD Model

Description

The SMX series ceramic capacitor from KYOCERA AVX is a general-purpose capacitor that is perfect for various applications.

  • Capacitance: 1 µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Package Type: Stacked DIP, 6 lead
  • Mounting Type: Through hole
  • Temperature Range: -55°C to 200°C
  • Length: 0.250"
  • Width: 0.300"
  • Feature: Low ESL (Stacked)
  • Capability: High temperature
  • Application: SMPS filtering
  • Packaging: Bulk
  • Standard Package: 70
