Same model may have multiple batches, images only for reference.

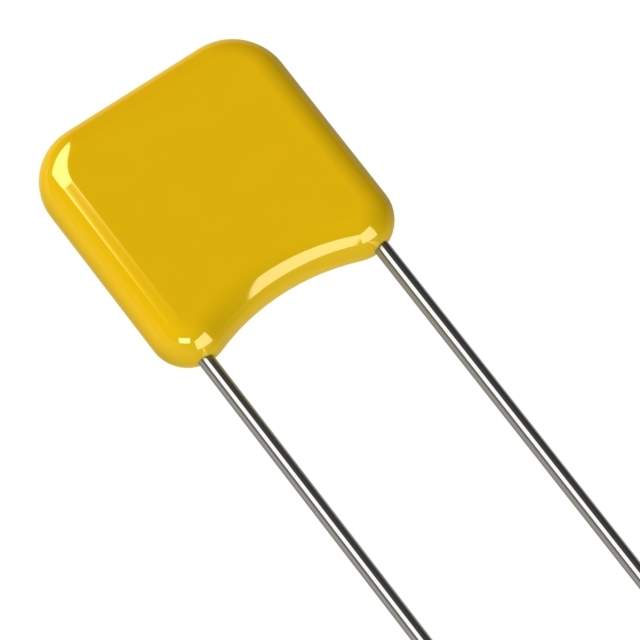

SR502E105MAA Real Image
Same model may have multiple batches, images only for reference.

SR502E105MAA

Part No SR502E105MAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR502E105MAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 200V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Other Names 478-SR502E105MAA,SR502E105MAA
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305717-SR502E105MAA
Ultra Librarian 3D Model Ultra Librarian SR502E105MAA CAD Model

Description

The KYOCERA AVX SR502E105MAA is a ceramic capacitor with a capacity of 1 µF and ±20% tolerance.

  • Capacitance: 1 µF
  • Tolerance: ±20%
  • Series: SkyCap® SR
  • Voltage Rating: 200V
  • Operating Temperature: 10°C to 85°C
  • Package/Case: Radial
  • Mounting: Through Hole
  • Package: Bulk
  • Package Quantity: 500 units
  • HTSUS: 8532.24.0060
