Same model may have multiple batches, images only for reference.

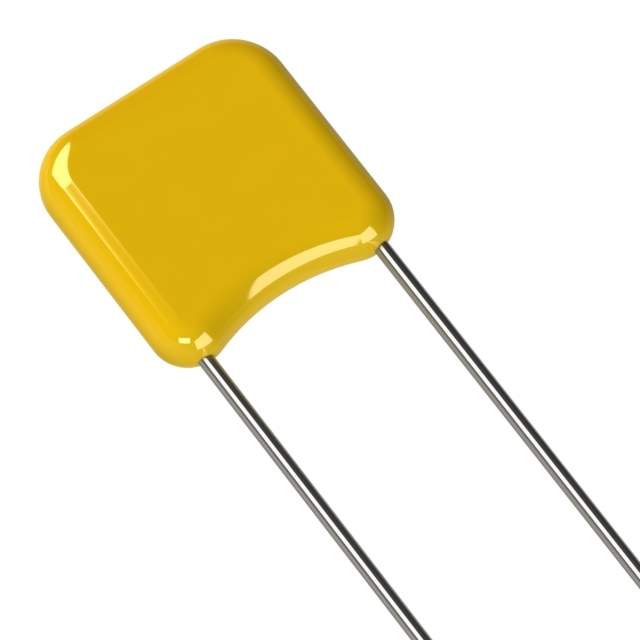

SR505C335KAA Real Image
Same model may have multiple batches, images only for reference.

SR505C335KAA

Part No SR505C335KAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR505C335KAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 3.3 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305471-SR505C335KAA
Ultra Librarian 3D Model Ultra Librarian SR505C335KAA CAD Model

Description

The SkyCap® SR series ceramic capacitor is a general-purpose capacitor that is ideal for a variety of applications.

  • Capacitance: 3.3 µF
  • Voltage Rating: 50V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Mounting Type: Through hole
  • Package/Case: Radial
  • Lead Spacing: 0.400" (10.16mm)
  • Seated Height: 0.560" (14.22mm)
  • Package Quantity: 500
  • ECCN: EAR99
  • Manufacturer: KYOCERA AVX
