Same model may have multiple batches, images only for reference.

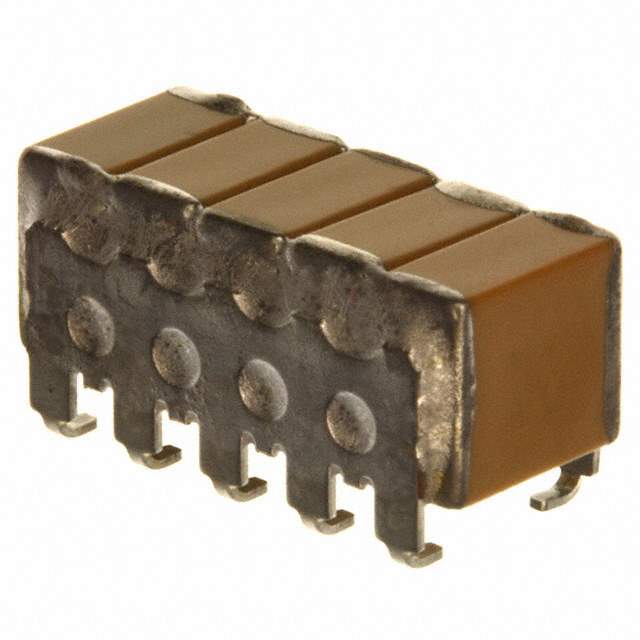

ST201C226MAJ05 Real Image
Same model may have multiple batches, images only for reference.

ST201C226MAJ05

Part No ST201C226MAJ05
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
ST201C226MAJ05 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series TurboCap™
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Surface Mount, MLCC
Package / Case Stacked SMD, 10 J-Lead
Dimension 0.525" L x 0.300" W (13.34mm x 7.62mm)
Thickness (Max) 0.220" (5.59mm)
Lead Style J-Lead
Other Names 478-6118
Standard Package 48
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1302903-ST201C226MAJ05
Ultra Librarian 3D Model Ultra Librarian ST201C226MAJ05 CAD Model

Description

The ST201C226MAJ05 is a ceramic capacitor part that falls under the category of Capacitors.

  • Series: TurboCap™ series
  • Feature: Low ESL (Stacked)
  • Package: Bulk
  • Standard Package: 48
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rating: 100V
  • Temperature Coefficient: X7R
  • Part Dimensions: 0.525" L x 0.300" W (13.34mm x 7.62mm)
  • Thickness (Max): 0.220" (5.59mm)
  • Lead Style: J-Lead
  • Mounting Type: Surface mount, MLCC
  • Package/Case: Stacked SMD, 10 J-Lead
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8532.24.0020
