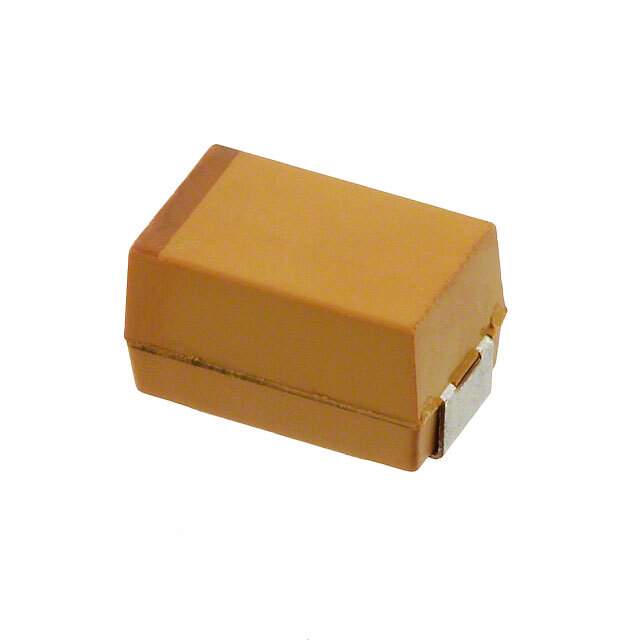

Same model may have multiple batches, images only for reference.

TCJD227M016R0050E

Name: TCJD227M016R0050E
Brand: AVX Corp/Kyocera Corp
SKU: 1331482
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TCJD227M016R0050E
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 220UF 16V 2917 / 220 µF Molded Tantalum Polymer Capacitor 16 V 2917 (7343 Metric) 50mOhm @ 100kHz
Datasheet	TCJD227M016R0050E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Manufacturer	KYOCERA AVX
Packaging	Reel - TR
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	16 V
Type	Molded
ESR (Equivalent Series Resistance)	50mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	Surface Mount
Case / Package	2917 (7343 Metric)
Size / Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.122" (3.10mm)
Manufacturer Size Code	D
Features	General Purpose
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	478-13283-6,478-13283-2,478-13283-1
Standard Package	500
Win Source Part Number	1331482-TCJD227M016R0050E
Ultra Librarian 3D Model	Ultra Librarian TCJD227M016R0050E CAD Model

Description

The KYOCERA AVX 1331482-TCJD227M016R0050E is a general-purpose molded tantalum polymer capacitor.

Capacitance: 220 µF
Voltage Rating: 16 V
Tolerance: ±20%
Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height: 0.122" (3.10mm)
ESR: 50mOhm @ 100kHz
Lifetime: 2000 Hrs @ 105°C
Mounting Type: Surface Mount
Case/Package: 2917 (7343 Metric)
RoHS3 Compliant: Yes
ECCN: EAR99
Applications: power supplies, DC/DC converters, and telecommunications equipment.
