Same model may have multiple batches, images only for reference.

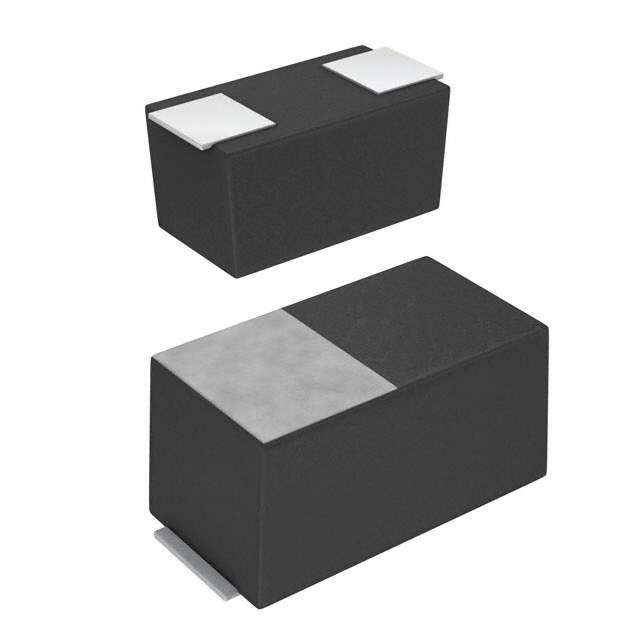

TCM1C225M8R Real Image
Same model may have multiple batches, images only for reference.

TCM1C225M8R

Part No TCM1C225M8R
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 2.2UF 20% 16V 0603 / 2.2 µF Molded Tantalum Capacitors 16 V 0603 (1608 Metric) 13.5Ohm
Datasheet
TCM1C225M8R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr KYOCERA AVX
Series TC
Package Tape & Reel
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 16 V
Type Molded
ESR (Equivalent Series Resistance) 13.5Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Dimension 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height - Seated (Max) 0.035" (0.90mm)
Manufacturer Size Code M
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 478-TCM1C225M8RTR,511-1680-6-ND,511-1680-1-ND,511-1680-2-ND,478-TCM1C225M8RCT,511-1680-1,511-1680-2,478-TCM1C225M8RDKR,511-1680-6
Standard Package 4,000
Win Source Part Number 969074-TCM1C225M8R
Ultra Librarian 3D Model Ultra Librarian TCM1C225M8R CAD Model

Description

The TC molded tantalum capacitor from KYOCERA AVX is designed for general-purpose applications.

  • Capacitance: 2.2 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 13.5Ohm
  • Package: 0603 (1608 Metric)
  • Dimension: 0.063" L x 0.033" W (1.60mm x 0.85mm)
  • Seated Height: 0.035" (0.90mm)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Standard Package: 4,000
  • Mounting Technology: SMD (SMT)
