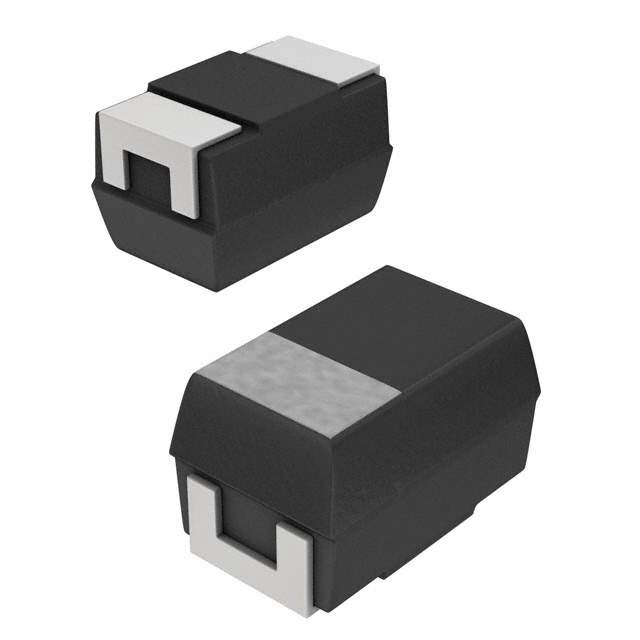

TCP0J685M8R Real Image
Same model may have multiple batches, images only for reference.

TCP0J685M8R

Part No TCP0J685M8R
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 20% 6.3V 0805 / 6.8 µF Molded Tantalum Capacitors 6.3 V 0805 (2012 Metric) 9.3Ohm
Datasheet
TCP0J685M8R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr KYOCERA AVX
Series TC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 6.8 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Type Molded
ESR (Equivalent Series Resistance) 9.3Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.047" (1.20mm)
Manufacturer Size Code P
Features General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 511-1445-6-ND,511-1445-1,478-TCP0J685M8RCT,511-1445-2,478-TCP0J685M8RDKR,511-1445-2-NDL,511-1445-6,Q4822875,511-1445-2-ND,511-1445-1-ND,478-TCP0J685M8RTR
Standard Package 3,000
Win Source Part Number 970336-TCP0J685M8R
Ultra Librarian 3D Model Ultra Librarian TCP0J685M8R CAD Model

Description

The KYOCERA AVX TCP0J685M8R is a tantalum capacitor from the TC series.

  • Capacitance: 6.8 μF
  • Tolerance: ±20%
  • Rated Voltage: 6.3V
  • ESR (Equivalent Series Resistance): 9.3Ohm
  • Type: Molded
  • Use: General purpose
  • Package: Tape and reel
  • Height: 0.047" (1.20mm)
  • Lead Spacing: -
  • Package Size Code: P
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8532.21.0050
  • Package/Case: 0805 (2012 Metric)
  • Standard Package: 3000 units
